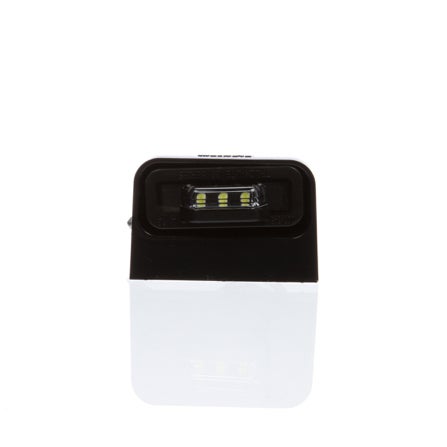

36 Series, LED, 3 Diode, License Light, Rectangular, Black Bracket Mount, Hardwired, .180 Bullet, 12-24V, Kit
36042C
Provides license lamp solution that requires no mounting brackets or installation screws|Lamp adheres directly to mounting surface through use of heavy-duty adhesive backing, with an easy-to-install, peel-off liner|Gray and black brackets are only for rear exit wire lamp, (36140C), and are available if preferred over surface mounting|OmniVolt|Hardwired with rear and side exit wires complete with 180 molded bullets|Can be mounted without any mounting brackets or fasteners|LEDs draw much less current and are rated at 100,000 hours|Electronics are completely sealed in epoxy to resist damage caused by moisture, corrosion, shock and vibration|When properly mounted the lamps are designed to conform to the applicable requirements of FMVSS - 108|Lifetime warranty
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 36 Series, LED, 3 Diode, License Light, Rectangular, Black Bracket Mount, Hardwired, .180 Bullet, 12-24V, Kit |
|---|---|
| Brand | TL |
| Category | License Light |
| Series | 36 Series |
| Warranty | Lifetime |
| Common Size | 1"x2" |
| Country of Origin | ZZ |
| Current_AMP | 0.05 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Provides license lamp solution that requires no mounting brackets or installation screws|Lamp adheres directly to mounting surface through use of heavy-duty adhesive backing, with an easy-to-install, peel-off liner|Gray and black brackets are only for rear exit wire lamp, (36140C), and are available if preferred over surface mounting|OmniVolt|Hardwired with rear and side exit wires complete with 180 molded bullets|Can be mounted without any mounting brackets or fasteners|LEDs draw much less current and are rated at 100,000 hours|Electronics are completely sealed in epoxy to resist damage caused by moisture, corrosion, shock and vibration|When properly mounted the lamps are designed to conform to the applicable requirements of FMVSS - 108|Lifetime warranty |
| Housing Material | Polycarbonate |
| Itm Id | 3850887 |
| KIT (Yes/No) | Yes |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Lens Height_INH | 0.56 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 1.5 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Bracket Mount Kit |
| NAPA Part Number | 36042C |
| Number of Diodes/Bulbs | 3 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 36042C4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | R4|J587|L |
| Std Carton Qty | 1 |
| Taxonomy | Lights.License Lights |
| Total Depth_MMT | 19.05 |
| Total Depth | 0.75 |
| Total Height_MMT | 13.21 |
| Total Height | 0.52 |
| Total Width_MMT | 47.75 |
| Total Width | 1.88 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-042 |
| Voltage (VLT) | 12|24 |
| Weight | 0.09 |
