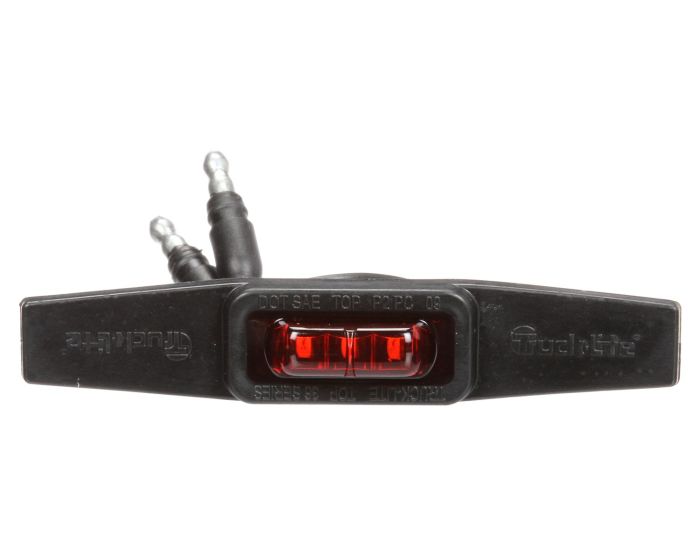

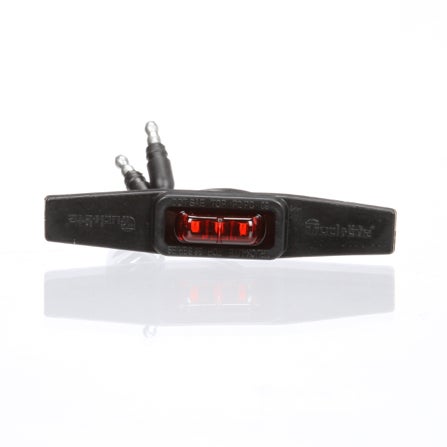

36 Series, Flex-Lite Rear Exit Wire, LED, Red Winged, 3 Diode, Marker Clearance Light, PC, Adhesive Mount, Hardwired, .180 Bullet Terminal, 12V
36110R
Winged housing provides option for mounting around corners on a radius|Provides a clearance/marker solution that requires no mounting brackets or installation screws|Lamps adhere directly to application surface through the use of heavy-duty adhesive backing|Easy-to-install peel-off liner|Hardwired lamp design is easily retrofit able|Rear exit wire version requires a 3/8mounting hole, and self-seals hole upon installation|Side mount options can be mounted without any mounting holes|LEDs draw much less current, allowing more power for other vehicle requirements|Electronics are completely sealed in epoxy to resist damage caused by moisture and corrosion|Reduces lighting costs caused by physical damage and heat entrapment
- Hardwired
- .180 Bullet
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 36 Series, Flex-Lite Rear Exit Wire, LED, Red Winged, 3 Diode, Marker Clearance Light, PC, Adhesive Mount, Hardwired, .180 Bullet Terminal, 12V |
|---|---|
| Brand | TL |
| Category | Marker Clearance Light |
| Series | 36 Series |
| Warranty | Lifetime |
| Country of Origin | ZZ |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Winged housing provides option for mounting around corners on a radius|Provides a clearance/marker solution that requires no mounting brackets or installation screws|Lamps adhere directly to application surface through the use of heavy-duty adhesive backing|Easy-to-install peel-off liner|Hardwired lamp design is easily retrofit able|Rear exit wire version requires a 3/8mounting hole, and self-seals hole upon installation|Side mount options can be mounted without any mounting holes|LEDs draw much less current, allowing more power for other vehicle requirements|Electronics are completely sealed in epoxy to resist damage caused by moisture and corrosion|Reduces lighting costs caused by physical damage and heat entrapment |
| Feature Highlights | Hardwired|.180 Bullet|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3483183 |
| KIT (Yes/No) | No |
| Lens Shape | Winged |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | .56 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 1.36 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Adhesive Mount|2 Screw |
| NAPA Part Number | 36110R |
| Number of Diodes/Bulbs | 3 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 36110R4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|PC |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Marker & Clearance Lights |
| Total Depth_MMT | 19.05 |
| Total Depth | .75 |
| Temp. Description | 36 SERIES FLEX-LITE C/M LAMPS |
| Total Height_MMT | 231.65 |
| Total Height | 9.12 |
| Total Length | .03 |
| Total Width_MMT | 100.58 |
| Total Width | 3.96 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111177890 |
| VMRS | 034-004-253 |
| Voltage (VLT) | 12 |
| Weight | .04 |
