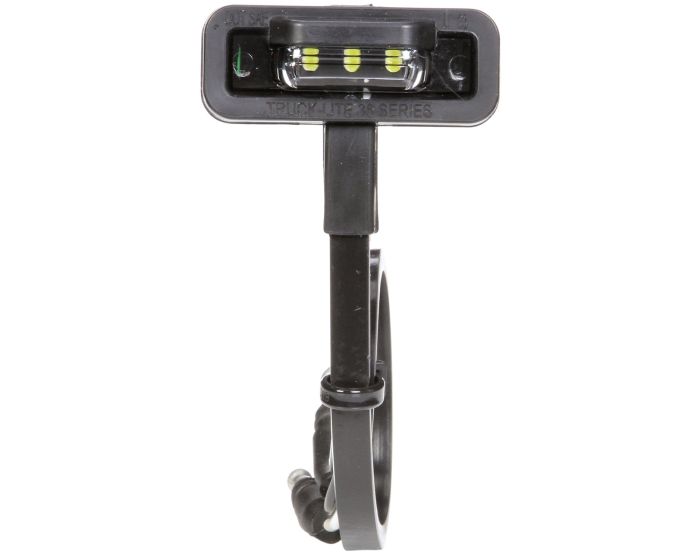

36 Series, Side Exit Wires, LED, 3 Diode, License Light, Rectangular, Adhesive Mount, Hardwired, .180 Bullet, 12-24V

36145C

Provides license lamp solution that requires no mounting brackets or installation screws|Lamp adheres directly to mounting surface through use of heavy-duty adhesive backing, with an easy-to-install, peel-off liner|Gray and black brackets are only for rear exit wire lamp, (36140C), and are available if preferred over surface mounting|OmniVolt|Hardwired with rear and side exit wires complete with 180 molded bullets|Can be mounted without any mounting brackets or fasteners|LEDs draw much less current and are rated at 100,000 hours|Electronics are completely sealed in epoxy to resist damage caused by moisture, corrosion, shock and vibration|When properly mounted the lamps are designed to conform to the applicable requirements of FMVSS - 108|Lifetime warranty
Need To Order By Phone?

(800) - 562 - 5012

Product Name 36 Series, Side Exit Wires, LED, 3 Diode, License Light, Rectangular, Adhesive Mount, Hardwired, .180 Bullet, 12-24V
New No
Sale No
Best Sellers No
Show Size Chart No
Brand TL
Category License Light
Series 36 Series
Warranty Lifetime
Common Size 1"x2"
Country of Origin ZZ
Current_AMP 0.05
Diamond Shell (Yes/No) No
Features & Benefits Provides license lamp solution that requires no mounting brackets or installation screws|Lamp adheres directly to mounting surface through use of heavy-duty adhesive backing, with an easy-to-install, peel-off liner|Gray and black brackets are only for rear exit wire lamp, (36140C), and are available if preferred over surface mounting|OmniVolt|Hardwired with rear and side exit wires complete with 180 molded bullets|Can be mounted without any mounting brackets or fasteners|LEDs draw much less current and are rated at 100,000 hours|Electronics are completely sealed in epoxy to resist damage caused by moisture, corrosion, shock and vibration|When properly mounted the lamps are designed to conform to the applicable requirements of FMVSS - 108|Lifetime warranty
Housing Material Polycarbonate
Itm Id 3845711
KIT (Yes/No) No
Lens Shape Rectangular
Lighting Technology LED
Lamp Connection Hardwired
Lens Color Clear
Lens Height_INH 0.56
Lens Material Polycarbonate
Lens Width_INH 1.49
Mount/Trim Color Black
Mount/Trim Material Polycarbonate
Mount Type Adhesive Mount
NAPA Part Number 36145C
Number of Diodes/Bulbs 3
Number of Wires 2
Packaging Type Standard
Part Number 36145C4
Plug Side One Hardwired
Plug Side Two .180 Bullet
Sealed/Bulb Replaceable Sealed
Standards Met R4|J587|L
Std Carton Qty 1
Taxonomy Lights.License Lights
Total Depth_MMT 19.05
Total Depth 0.75
Total Height_MMT 13.21
Total Height 0.52
Total Width_MMT 47.75
Total Width 1.88
UNSPSC/Tariff 25172900
UPC 735111186007
VMRS 034-002-042
Voltage (VLT) 12|24
Weight 0.03
