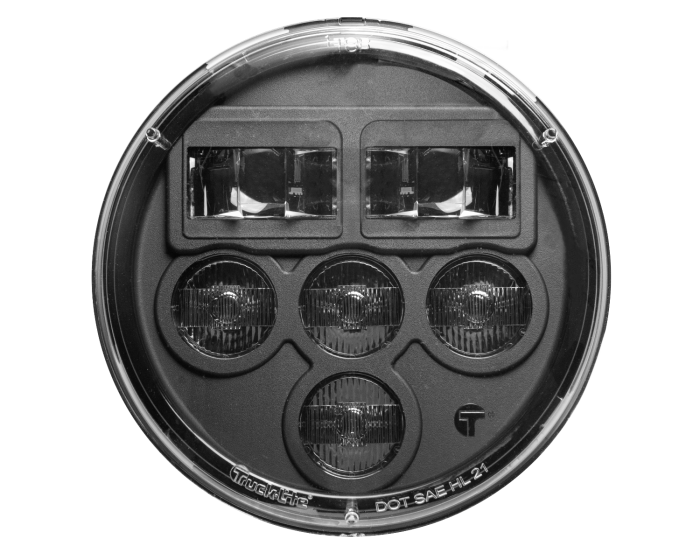

Product Name | 37 Series, LED, 7", Round, 6 Diode , Clear, Polycarbonate Lens, Hardwired, 12V|24V, High Beam and Low Beam, Direct LED Headlight |
---|---|
Series | 37 Series |
Brand | TL |
Category | Headlamp |
Aiming Type | Mechanical Aim |
Beam Pattern | High|Low |
Beam Type | LOW / HIGH |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Size | 7" |
Country of Origin | US |
Current Major | 2.00A-3.70A @ 12.8V 1.05A-1.90A @ 25.8V |
Current Minor | 1.38A-1.98A @ 12.8V 0.70A-1.00A @ 25.8V |
Features & Benefits | The TL 37 Series LED Headlamp, featuring a robust die-cast aluminum housing and clear polycarbonate lens, offers both high and low beam patterns with 6 diodes, providing powerful and versatile illumination. With a wide voltage range of 12V to 24V, it ensu |
Heated Lens (Yes/No) | No |
Housing Material | Die-Cast Aluminum |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lamp Connection (Simplified) | Hardwired |
Lens Color | Clear |
Lens Height_INH | 1.2" |
Lens Material | Polycarbonate |
Lens Width_INH | 7" DIAMETER |
Number of Diodes/Bulbs | 6 |
Number of Wires | 3 |
Packaging Type | Standard |
Plug Side One | Hardwired |
Plug Side Two | H4 - 3 blade connector |
Sealed/Bulb Replaceable | Sealed |
Total Depth | 3.6" |
Total Height | 7"DIAMETER |
Total Width | 7" DIAMETER |
Voltage (VLT) | 12|24 |
Weight | 1.8 lb |
Wire Gauge | 16 |
