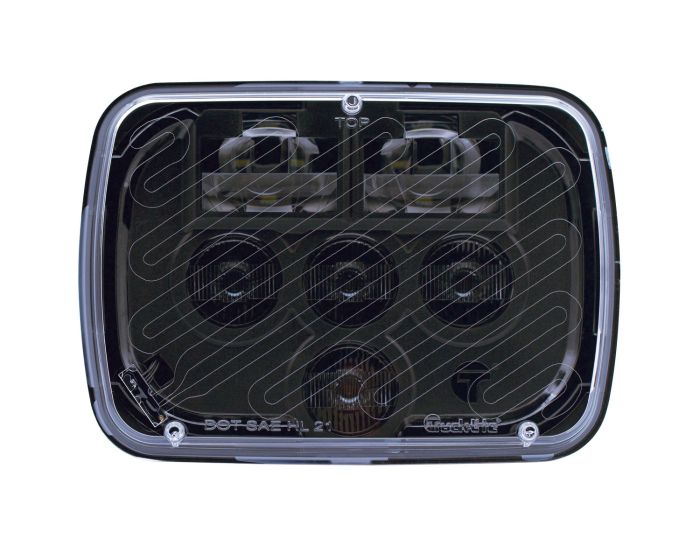

Product Name | 37 Series, LED, 5"x7", Rectangular, 6 Diode , Clear, Polycarbonate Lens, Hardwired, 12V|24V, High Beam and Low Beam, Heated, Direct LED Headlight |
---|---|
Series | 37 Series |
Aiming Type | Mechanical Aim |
Beam Pattern | High|Low |
Beam Type | Low/High |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Size | 5"x7" |
Country of Origin | US |
Features & Benefits | The TL 37 Series Direct LED Headlights are rectangular 5"x7" headlights with 6 diodes for both high and low beam patterns, featuring a durable die-cast aluminum housing and clear polycarbonate lens.they are suitable for 12V and 24V systems, providing r |
Heated Lens (Yes/No) | No |
Housing Material | Die-Cast Aluminum |
Lens Shape | Rectangular |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lamp Connection (Simplified) | Hardwired |
Lens Color | Clear |
Lens Height_INH | 1.15 |
Lens Material | Polycarbonate |
Lens Width_INH | 5.591 |
Number of Diodes/Bulbs | 6 |
Number of Wires | 3 |
Packaging Type | Standard |
Plug Side One | Hardwired |
Plug Side Two | H4 connector |
Sealed/Bulb Replaceable | Sealed |
Taxonomy | LED Headlight |
Total Depth_MMT | 78.74 |
Total Depth | 3.1 |
Total Height_MMT | 142.01 |
Total Height | 7.819 |
Voltage (VLT) | 12|24 |
Weight | 2.3 |
Wire Gauge | 16 |
