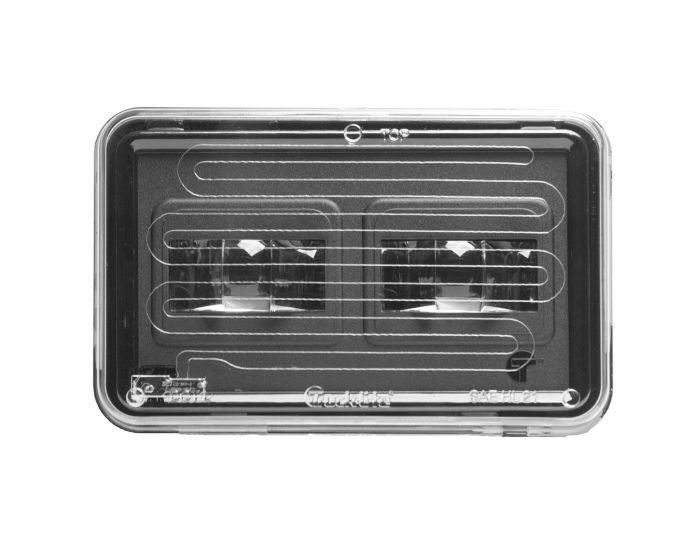

Product Name | 37 Series, LED, 4"x6", Rectangular, 2 Diode , Clear, Polycarbonate Lens, Hardwired, Low Beam , Heated, Direct LED Headlight |
---|---|
Series | 37 Series |
Brand | TL |
Category | Headlamp |
Aiming Type | Mechanical Aim |
Beam Pattern | Low |
Beam Type | LOW |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Size | 4"x6" |
Country of Origin | US |
Current Major | 1.13A-1.98A |
Features & Benefits | The Direct LED Headlights 4x6, featuring a clear polycarbonate lens and robust die-cast aluminum housing, offer efficient low beam illumination with a current draw of 1.13A-1.98A, and the added benefit of a heated lens, ensuring improved visibility in |
Heated Lens (Yes/No) | No |
Housing Material | Die-Cast Aluminum |
Lens Shape | Rectangular |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lamp Connection (Simplified) | Hardwired |
Lens Color | Clear |
Lens Height_INH | 1.2" |
Lens Material | Polycarbonate |
Lens Width_INH | 4.2" |
Number of Diodes/Bulbs | 2 |
Number of Wires | 3 |
Packaging Type | Standard |
Plug Side One | Hardwired |
Plug Side Two | H4 - 3 blade connector |
Sealed/Bulb Replaceable | Sealed |
Total Depth | 3" |
Total Height | 4.2" |
Total Width | 6.6" |
Weight | 1.25 lb |
Wire Gauge | 16 |
