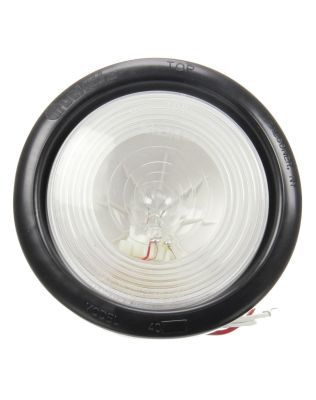

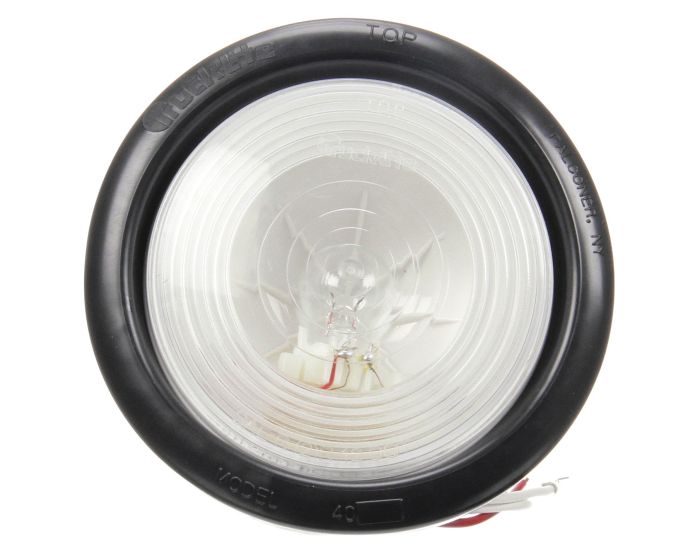

Product Name | 40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit, Pallet |
---|---|
Brand | TL |
Category | Back-Up Light |
Series | 40 Series |
Warranty | 2-Year |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Root | 40004 |
Country of Origin | ZZ |
Current_AMP | 2.1 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Polycarbonate lens and housing are sonically sealed|Bulb is shock mounted for extended life|Legal only for back-up function|Not recommended for dome lamp use|Replaces Signal-Stat 4041W and 4047W|Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products |
Feature Highlights | Pallet|LC_PL-2|Kit|12 V |
Housing Material | Polycarbonate |
Itm Id | 2119355 |
KIT (Yes/No) | Yes |
Lens Shape | Round |
Lighting Technology | Incandescent |
Lamp Connection | PL-2 |
Lens Color | Clear |
Lens Height_INH | 4.31 |
Lens Material | Polycarbonate |
Lens Width_INH | 4.31 |
Mount/Trim Color | Black |
Mount/Trim Material | PVC |
Mount Type | Grommet Kit |
Number of Diodes/Bulbs | 1 |
Number of Wires | 2 |
Packaging Type | Pallet |
Part Number | 40004-P |
Plug Side One (Simplified) | PL-2 |
Plug Side One | PL-2 |
Plug Side Two | Stripped End|Ring Terminal |
Sealed/Bulb Replaceable | Sealed |
Standards Met | R |
Std Carton Qty | 600 |
Taxonomy | Lights.Back-Up Lights |
Total Depth_MMT | 53.59 |
Total Depth | 2.11 |
Temp. Description | Mdl 40 B/U Lamp Kit, Pallet |
Total Height_MMT | 136.65 |
Total Height | 5.38 |
Total Width_MMT | 136.65 |
Total Width | 5.38 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111105176 |
VMRS | 034-003-074 |
Voltage (VLT) | 12 |
Weight | 120 |
