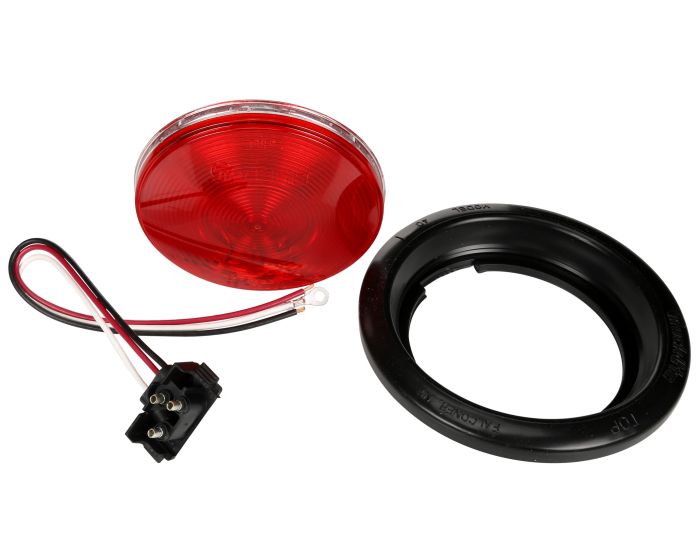

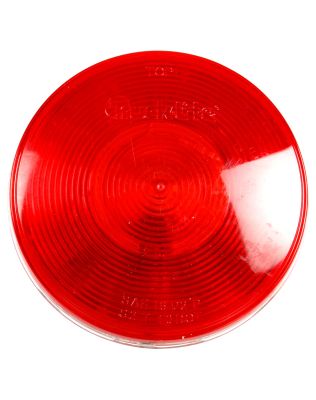

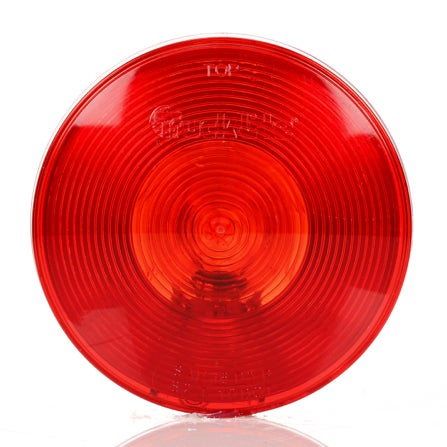

40 Series, incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PVC Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit

40006R

Features clear back housing|Not recommended for clearance marker applications|Grommet kit features flush mounting in a 4-1/2" hole
  • PL-3
  • Kit
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 40 Series, incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PVC Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Stop/Turn/Tail
Warranty 2-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Current Minor .48
Diamond Shell (Yes/No) No
Features & Benefits Features clear back housing|Not recommended for clearance marker applications|Grommet kit features flush mounting in a 4-1/2" hole
Feature Highlights PL-3|Kit|12 V
Housing Material Polycarbonate
Itm Id 2119523
KIT (Yes/No) Yes
Lens Shape Round
Lighting Technology Incandescent
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Red
Lens Height_INH 4.23
Lens Material Polycarbonate
Lens Width_INH 4.23
Mount/Trim Color Black
Mount/Trim Material PVC
Mount Type Grommet Kit
NAPA Part Number 40006R
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Standard
Part Number 40006R4
Plug Side One (Simplified) PL-3
Plug Side One Right Angle PL-3
Plug Side Two Stripped End|Ring Terminal
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|I6|P
Std Carton Qty 1
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 53.59
Total Depth 2.11
Temp. Description LMP KIT-4"S/T/T CLR BACK GRM
Total Height_MMT 136.65
Total Height 5.38
Total Length 2.1
Total Width_MMT 136.65
Total Width 5.38
UNSPSC/Tariff 25172900
UPC 0724956146970
VMRS 034-002-013
Voltage (VLT) 12
Weight .58
