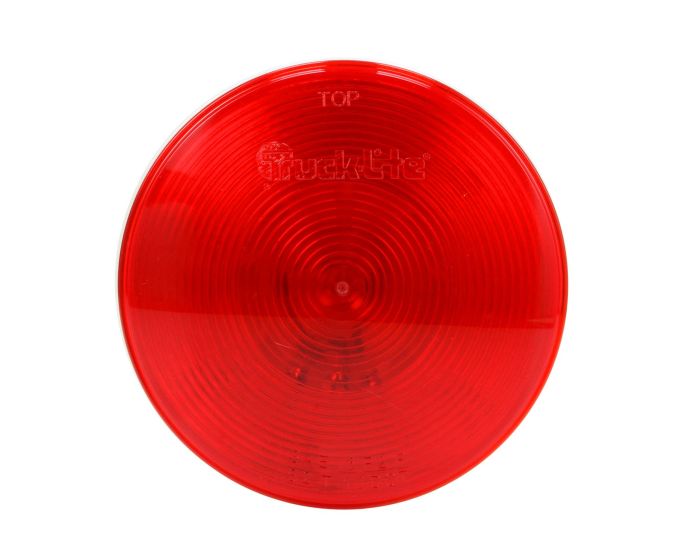

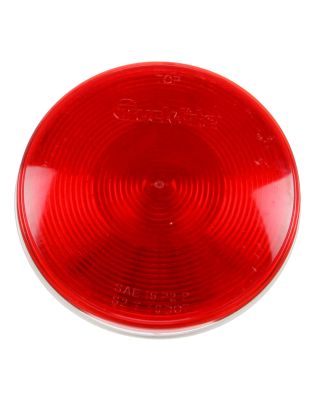

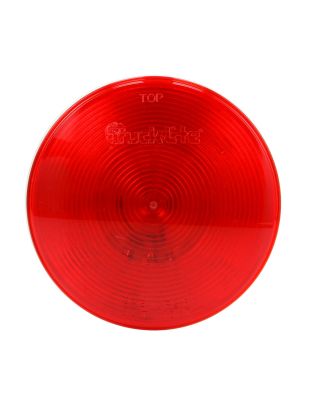

40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 24V, Kit, Bulk

40009R3

Flush mount grommets are designed for mounting in a 4-1/2" hole,Heavy duty bulb last longer|Uniquely designed shock-mount extends lamp life
  • PL-3
  • Kit
  • Bulk
  • 24 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 24V, Kit, Bulk
Brand TL
Category Stop/Turn/Tail
Series 40 Series
Warranty 2-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 40009R
Country of Origin ZZ
Current Minor .34
Diamond Shell (Yes/No) No
Features & Benefits Flush mount grommets are designed for mounting in a 4-1/2" hole,Heavy duty bulb last longer|Uniquely designed shock-mount extends lamp life
Feature Highlights PL-3|Kit|Bulk|24 V
Itm Id 2119697
KIT (Yes/No) Yes
Lens Shape Round
Lighting Technology Incandescent
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Red
Lens Height_INH 4.31
Lens Material Polycarbonate
Lens Width_INH 4.31
Mount/Trim Color Black
Mount/Trim Material PVC
Mount Type Grommet Kit
NAPA Part Number 40009R3
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Bulk
Part Number 40009R3
Plug Side One (Simplified) PL-3
Plug Side One Right Angle PL-3
Plug Side Two Stripped End|Ring Terminal
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met S2|I6|P2|T
Std Carton Qty 100
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 53.59
Total Depth 2.11
Temp. Description Mdl 40 S/T/T Lamp Kit, 24 Volt
Total Height_MMT 109.47
Total Height 4.31
Total Length .93
Total Width_MMT 109.47
Total Width 4.31
UNSPSC/Tariff 25172900
UPC 0735111050353
VMRS 034-002-013
Voltage (VLT) 24
Weight 47
