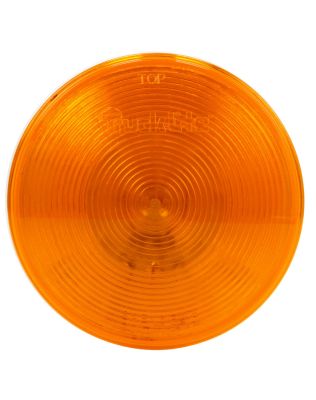

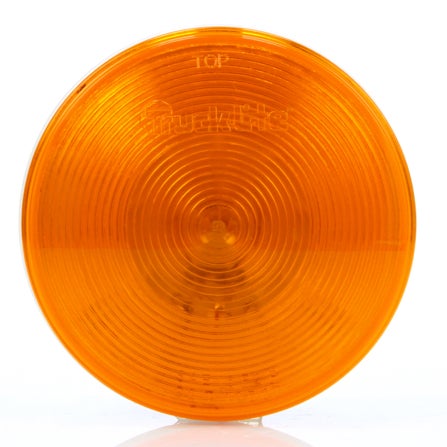

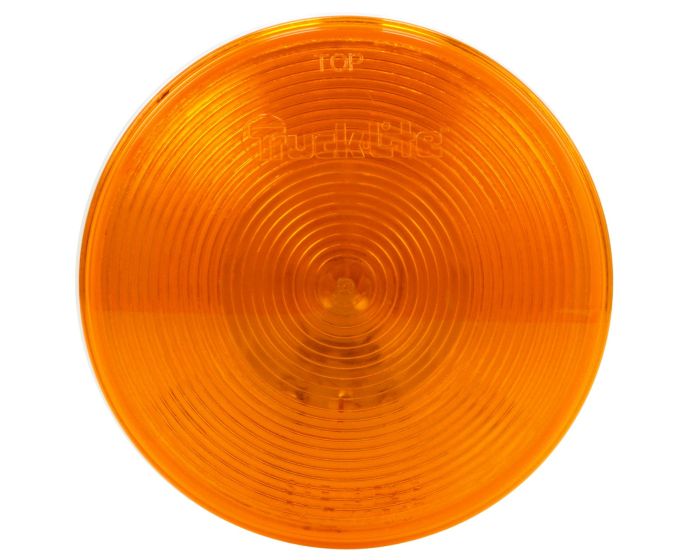

40 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, Black PVC, Grommet Mount, 24V, PL-3, Stripped End/Ring Terminal, Kit

40009Y

Heavy duty bulb last longer|Unique designed shock-mount extends lamp life|Available with or without reflectorized lens|Flush mount grommets are designed for mounting in a 4 1/2" hole|8 square inch (illuminating) stop/turn lens area for vehicles under 80 inches wide Meets reflex, tail or clearance function for vehicles over 80 inches wide|Upgrade to LED Lighting System using Truck-Lite's Super 44 series of products
  • PL-3
  • Kit
  • 24 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 40 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, Black PVC, Grommet Mount, 24V, PL-3, Stripped End/Ring Terminal, Kit
Brand TL
Category Front/Park/Turn
Series 40 Series
Warranty 2-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 40009Y
Common Size 4"
Country of Origin ZZ
Current Major 0.93
Current Minor 0.34
Diamond Shell (Yes/No) No
Features & Benefits Heavy duty bulb last longer|Unique designed shock-mount extends lamp life|Available with or without reflectorized lens|Flush mount grommets are designed for mounting in a 4 1/2" hole|8 square inch (illuminating) stop/turn lens area for vehicles under 80 inches wide Meets reflex, tail or clearance function for vehicles over 80 inches wide|Upgrade to LED Lighting System using Truck-Lite's Super 44 series of products
Feature Highlights PL-3|Kit|24 V
Housing Material Polycarbonate
Itm Id 2119777
KIT (Yes/No) Yes
Lens Shape Round
Lighting Technology Incandescent
Lamp Connection PL-3
Lens Color Yellow
Lens Height_INH 4.31
Lens Material Polycarbonate
Lens Width_INH 4.31
Mount/Trim Color Black
Mount/Trim Material PVC
Mount Type Grommet Kit
NAPA Part Number 40009Y
Number of Diodes/Bulbs 1
Number of Wires 3
Packaging Type Standard
Part Number 40009Y4
Plug Side One (Simplified) PL-3
Plug Side One Right Angle PL-3
Plug Side Two Stripped End|Ring Terminal
Sealed/Bulb Replaceable Sealed
Standards Met I6|P|P2
Std Carton Qty 1
Taxonomy Lights.Front/Park/Turn Lights
Total Depth_MMT 53.59
Total Depth 2.11
Temp. Description Mdl 40 S/T/T Lamp Kit, 24 Volt
Total Height_MMT 109.47
Total Height 4.31
Total Width_MMT 109.47
Total Width 4.31
UNSPSC/Tariff 25172900
UPC 7.35111E+11
VMRS 034-002-013
Voltage (VLT) 24
Weight 0.58
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
