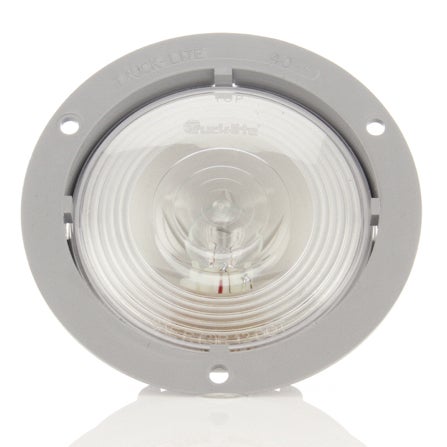

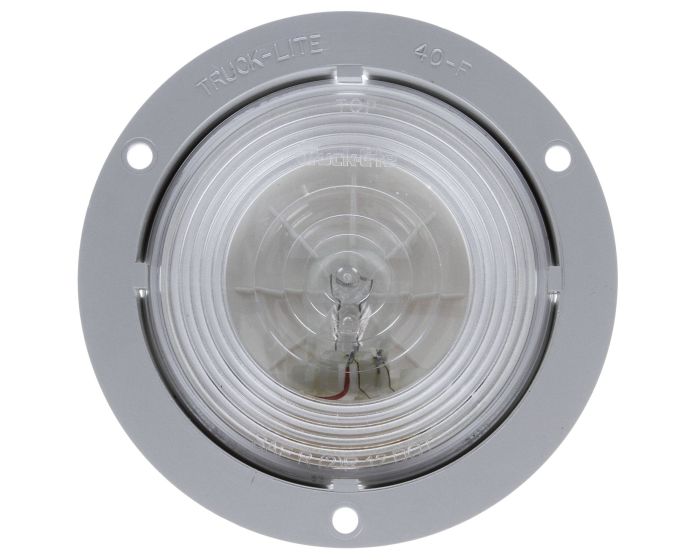

40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Gray Flange Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit
40024
Polycarbonate lens and housing are sonically sealed|Bulb is shock mounted for extended life|Legal only for back-up function|Not recommended for dome lamp use|Replaces Signal-Stat 4041W and 4047W|Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products
- LC_PL-2
- Kit
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Gray Flange Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit |
|---|---|
| Brand | TL |
| Category | Back-Up Light |
| Series | 40 Series |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Country of Origin | ZZ |
| Current_AMP | 2.1 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Polycarbonate lens and housing are sonically sealed|Bulb is shock mounted for extended life|Legal only for back-up function|Not recommended for dome lamp use|Replaces Signal-Stat 4041W and 4047W|Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products |
| Feature Highlights | LC_PL-2|Kit|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2120268 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-2 |
| Lens Color | Clear |
| Lens Height_INH | 4.31 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.31 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | ABS |
| Mount Type | Flange Mount |
| NAPA Part Number | 40024 |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | 40024-4 |
| Plug Side One (Simplified) | PL-2 |
| Plug Side One | PL-2 |
| Plug Side Two | Stripped End|Ring Terminal |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | R |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Back-Up Lights |
| Total Depth_MMT | 54.61 |
| Total Depth | 2.15 |
| Temp. Description | Mdl 40 Sealed B/U W/Flange Kit |
| Total Height_MMT | 134.11 |
| Total Height | 5.28 |
| Total Width_MMT | 134.11 |
| Total Width | 5.28 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111012146 |
| VMRS | 034-003-074 |
| Voltage (VLT) | 12 |
| Weight | .4 |
