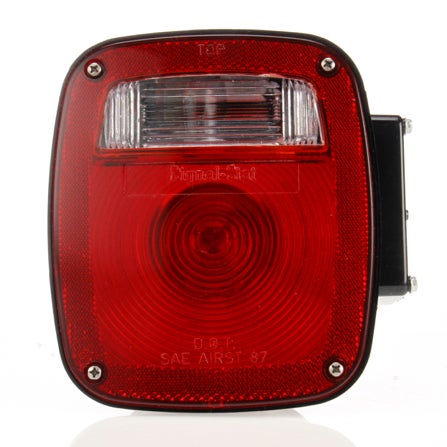

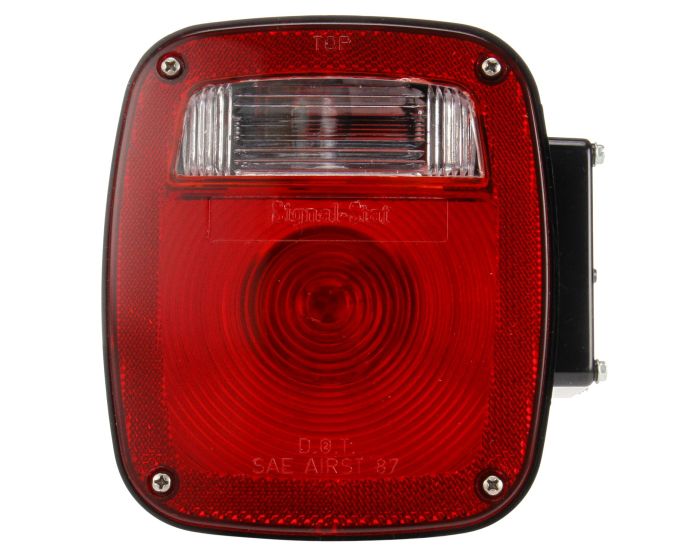

Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, LH, Combo Box Light, 3 Stud , Screw Terminal, 12V
4017
Replaces all GM medium and heavy duty 1972 to 1985|Integral housing with 3 bolt mount|Includes junction box cover
- No Plug
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, LH, Combo Box Light, 3 Stud , Screw Terminal, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Combination Box Lights |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Country of Origin | US |
| Current Major | 2.1 |
| Current Minor | 0.59 |
| Features & Benefits | Replaces all GM medium and heavy duty 1972 to 1985|Integral housing with 3 bolt mount|Includes junction box cover |
| Feature Highlights | No Plug|12 V |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Itm Id | 1973470 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| License Lamp (Yes/No) | No |
| Lighting Technology | Incandescent |
| Lamp Connection | Screw Terminal |
| Lens Color | Red|Clear |
| Lens Height_INH | 6.75 |
| Lens Material | Polycarbonate |
| Mount Type | 3 Stud Mount |
| NAPA Part Number | 4017 |
| Number of Diodes/Bulbs | 2 |
| Packaging Type | Standard |
| Part Number | SS4017-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Position | Left Hand Side |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | S2|I6|R|A|L|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Combination Box Lights |
| Total Depth_MMT | 67.18 |
| Total Depth | 2.65 |
| Temp. Description | Multi-Function Bulb Replaceable |
| Total Height_MMT | 171.45 |
| Total Height | 6.75 |
| Total Width_MMT | 146.05 |
| Total Width | 5.75 |
| UNSPSC/Tariff | 25172900 |
| UPC | 614046109735 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 1.29 |
