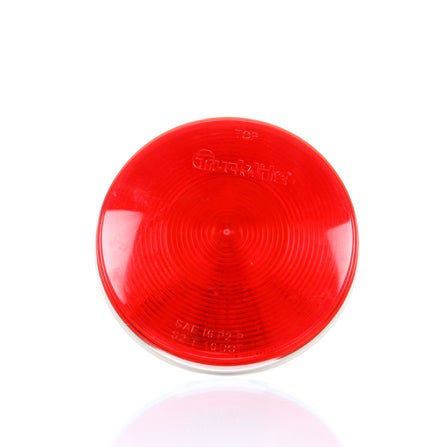

40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PL-3, 12V

40202R

Flush mount grommets are designed for mounting in a 4-1/2" hole|Heavy duty bulb last longer|Uniquely designed shock-mount extends lamp life
  • No Plug
  • PL-3
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PL-3, 12V
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Stop/Turn/Tail
Warranty 2-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 40202R
Country of Origin ZZ
Current Minor .48
Diamond Shell (Yes/No) No
Features & Benefits Flush mount grommets are designed for mounting in a 4-1/2" hole|Heavy duty bulb last longer|Uniquely designed shock-mount extends lamp life
Feature Highlights No Plug|PL-3|12 V
Itm Id 2122618
KIT (Yes/No) No
Lens Shape Round
Lighting Technology Incandescent
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Red
Lens Height_INH 4.31
Lens Material Polycarbonate
Lens Width_INH 4.31
Mount Type Grommet Mount
NAPA Part Number 40202R
Number of Diodes/Bulbs 1
Packaging Type Standard
Part Number 40202R4
Plug Side One No Plug
Plug Side Two No Plug
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met S2|I6|P2|T
Std Carton Qty 1
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 53.59
Total Depth 2.11
Temp. Description MDL 40 S/T/T LAMP
Total Height_MMT 109.47
Total Height 4.31
Total Length 2.1
Total Width_MMT 109.47
Total Width 4.31
UNSPSC/Tariff 25172900
UPC 0735111041306
VMRS 034-002-013
Voltage (VLT) 12
Weight .32
