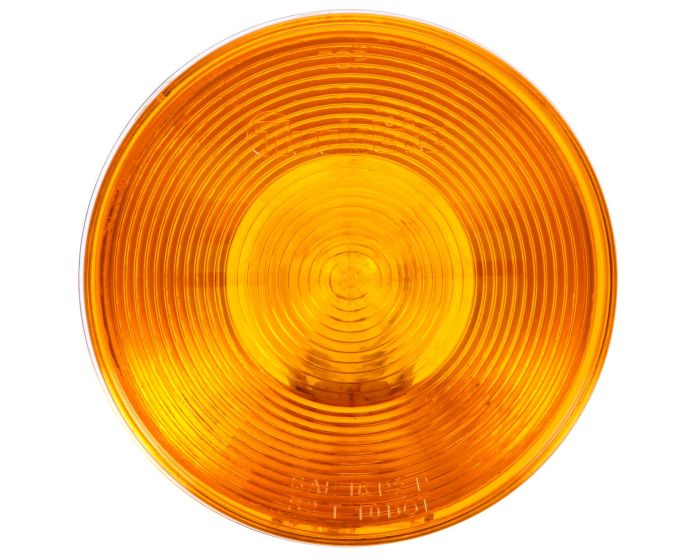

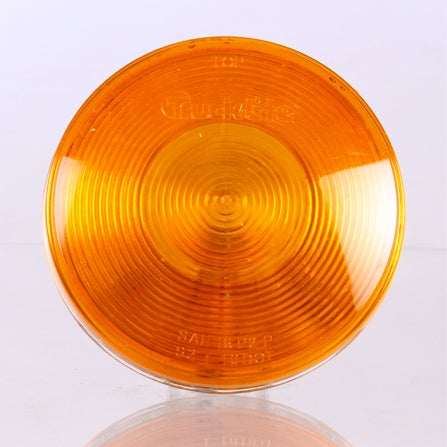

40 Series, Clear Back, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, 12V, PL-3
40206Y
Features clear back housing|Not recommended for clearance marker applications|Grommet kit features flush mounting in a 4-1/2" hole
- No Plug
- PL-3
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, Clear Back, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, 12V, PL-3 |
|---|---|
| Brand | TL |
| Category | Front/Park/Turn |
| Series | 40 Series |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 4" |
| Country of Origin | ZZ |
| Current Major | 2.1 |
| Current Minor | 0.48 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Features clear back housing|Not recommended for clearance marker applications|Grommet kit features flush mounting in a 4-1/2" hole |
| Feature Highlights | No Plug|PL-3|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2123135 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lens Color | Yellow |
| Lens Height_INH | 4.31 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.31 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 40206Y |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 40206Y4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 53.59 |
| Total Depth | 2.11 |
| Temp. Description | Mdl 40 S/T/T Clear B/U Lamp |
| Total Height_MMT | 109.47 |
| Total Height | 4.31 |
| Total Width_MMT | 109.47 |
| Total Width | 4.31 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 0.36 |
