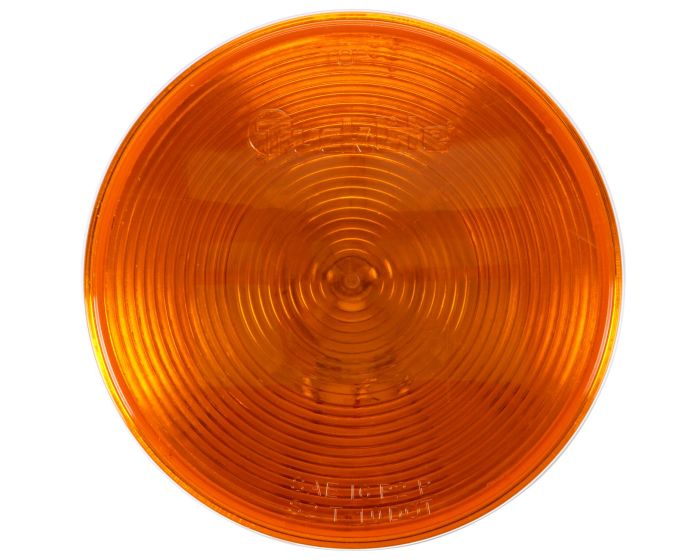

40 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, 24V, PL-3, Bulk
40209Y3
Heavy duty bulb last longer|Unique designed shock-mount extends lamp life|Available with or without reflectorized lens|Flush mount grommets are designed for mounting in a 4 1/2" hole|8 square inch (illuminating) stop/turn lens area for vehicles under 80 inches wide|Meets reflex, tail or clearance function for vehicles over 80 inches wide|Upgrade to LED Lighting System using Truck-Lite's Super 44 series of products
- No Plug
- PL-3
- Bulk
- 24 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, 24V, PL-3, Bulk |
|---|---|
| Brand | TL |
| Category | Front/Park/Turn |
| Series | 40 Series |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 40209Y |
| Common Size | 4" |
| Country of Origin | ZZ |
| Current Major | 0.93 |
| Current Minor | 0.34 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Heavy duty bulb last longer|Unique designed shock-mount extends lamp life|Available with or without reflectorized lens|Flush mount grommets are designed for mounting in a 4 1/2" hole|8 square inch (illuminating) stop/turn lens area for vehicles under 80 inches wide|Meets reflex, tail or clearance function for vehicles over 80 inches wide|Upgrade to LED Lighting System using Truck-Lite's Super 44 series of products |
| Feature Highlights | No Plug|PL-3|Bulk|24 V |
| Housing Material | Polycarbonate |
| Itm Id | 2123338 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lens Color | Yellow |
| Lens Height_INH | 4.31 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.31 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 40209Y3 |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 3 |
| Packaging Type | Bulk |
| Part Number | 40209Y3 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 100 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 53.59 |
| Total Depth | 2.11 |
| Temp. Description | Mdl 40 S/T/T Lamp, 24 Volt, Bu |
| Total Height_MMT | 109.47 |
| Total Height | 4.31 |
| Total Width_MMT | 109.47 |
| Total Width | 4.31 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 24 |
| Weight | 27 |
