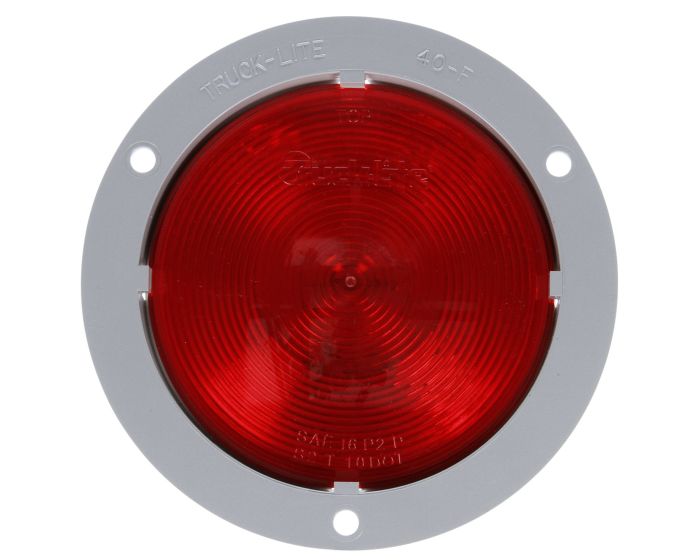

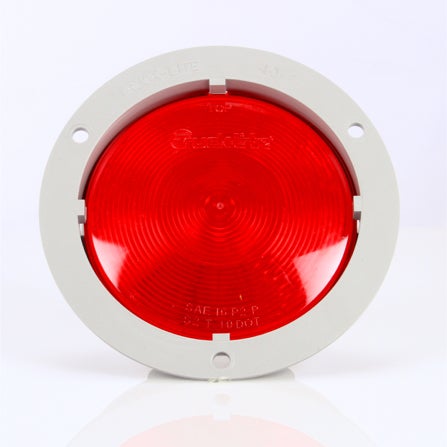

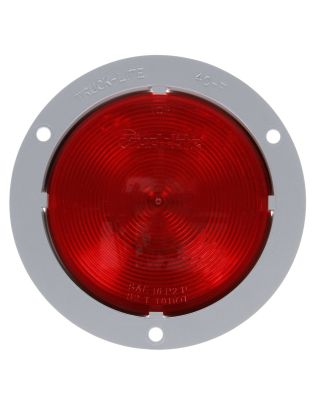

40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Flange Mount, PL-3, 12V
40222R
Flush mount grommets are designed for mounting in a 4-1/2" hole|Gray flange mounts are permanently affixed to housing
- No Plug
- PL-3
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Flange Mount, PL-3, 12V |
|---|---|
| Brand | TL |
| Category | Stop/Turn/Tail |
| Series | 40 Series |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 40222R |
| Country of Origin | ZZ |
| Current Minor | .48 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Flush mount grommets are designed for mounting in a 4-1/2" hole|Gray flange mounts are permanently affixed to housing |
| Feature Highlights | No Plug|PL-3|12 V |
| Itm Id | 2123952 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lamp Connection (Simplified) | PL-3 |
| Lens Color | Red |
| Lens Height_INH | 4.23 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.23 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | 40222R4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P2|S2|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 54.61 |
| Total Depth | 2.15 |
| Temp. Description | Mdl 40 S/T/T W/Flange Lamp |
| Total Height_MMT | 139.7 |
| Total Height | 5.5 |
| Total Length | 2.1 |
| Total Width_MMT | 139.7 |
| Total Width | 5.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111012368 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | .44 |
