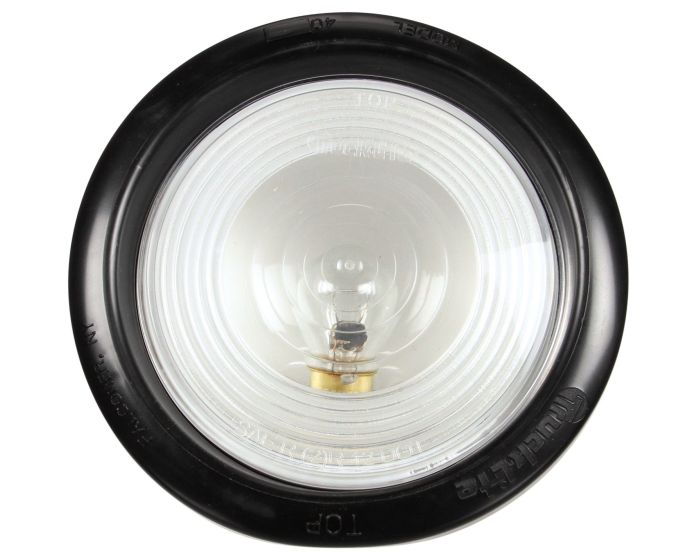

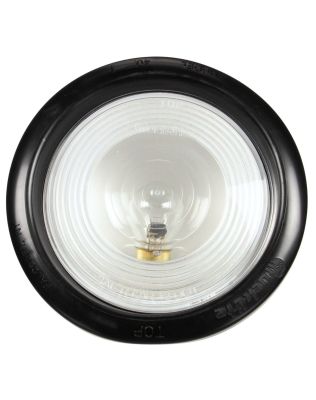

40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Grommet Mount, Socket Assembly, Stripped End/Ring Terminal, 12V, Kit, Bulk
40306-3
Polycarbonate lens and housing are sonically welded|Socket assembly cams-in for quick and easy bulb replacement|Legal as back-up lamp only|Not recommended for dome lamp use|Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products
- Socket Assembly
- Kit
- Bulk
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, Incandescent, Clear Round, 1 Bulb, Back-Up Light, Black Grommet Mount, Socket Assembly, Stripped End/Ring Terminal, 12V, Kit, Bulk |
|---|---|
| Brand | TL |
| Category | Back-Up Light |
| Series | 40 Series |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 40306 |
| Country of Origin | ZZ |
| Current_AMP | 2.1 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Polycarbonate lens and housing are sonically welded|Socket assembly cams-in for quick and easy bulb replacement|Legal as back-up lamp only|Not recommended for dome lamp use|Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products |
| Feature Highlights | Socket Assembly|Kit|Bulk|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2126184 |
| KIT (Yes/No) | Yes |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | Socket Assembly |
| Lens Color | Clear |
| Lens Height_INH | 4 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Kit |
| NAPA Part Number | 40306-3 |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 2 |
| Packaging Type | Bulk |
| Part Number | 40306-3 |
| Plug Side One | Socket Assembly |
| Plug Side Two | Stripped End|Ring Terminal |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | R |
| Std Carton Qty | 100 |
| Taxonomy | Lights.Back-Up Lights |
| Total Depth_MMT | 32 |
| Total Depth | 1.26 |
| Temp. Description | MDL 40 BULB REPLACEABLE B/U LA |
| Total Height_MMT | 134.11 |
| Total Height | 5.28 |
| Total Width_MMT | 134.11 |
| Total Width | 5.28 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111051152 |
| VMRS | 034-003-074 |
| Voltage (VLT) | 12 |
| Weight | 48 |
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.

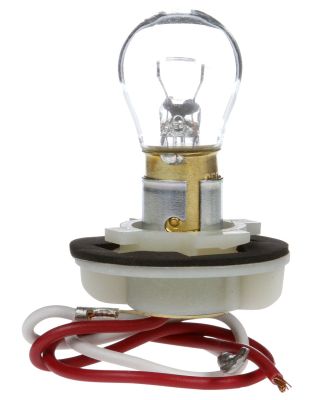

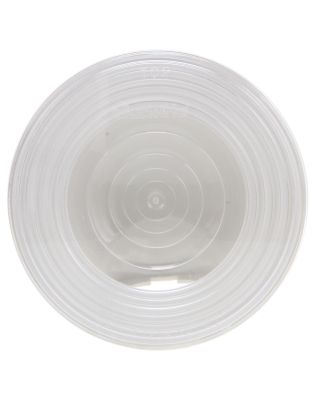

Replacement Parts / Kit Components
