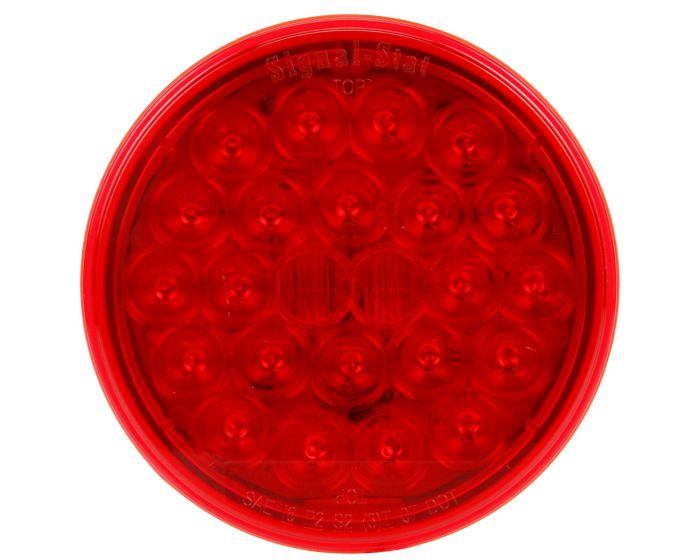

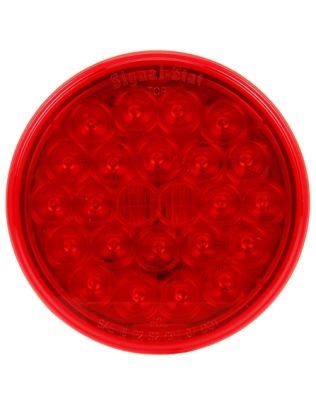

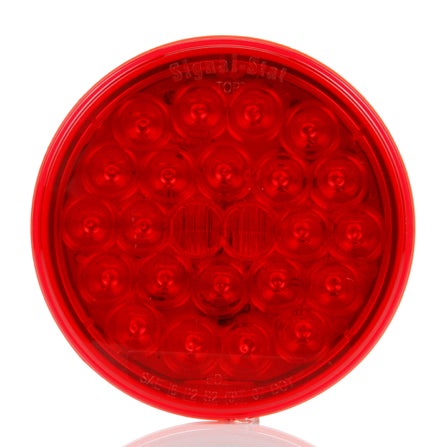

Product Name | Signal-Stat, LED, Red, Round, 24 Diode, Stop/Turn/Tail, PL-3, 12V |
---|---|
Brand | Signal-Stat |
Category | Stop/Turn/Tail |
Warranty | 2-Year |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Root | 4050 |
Country of Origin | TW |
Current Minor | .03 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Unique LED array displays a full pattern light output design|Uses standard right-angle connection |
Feature Highlights | No Plug|PL-3|12 V |
Itm Id | 1974966 |
KIT (Yes/No) | No |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | PL-3 |
Lamp Connection (Simplified) | PL-3 |
Lens Color | Red |
Lens Height_INH | 4.31 |
Lens Material | Polycarbonate |
Lens Width_INH | 4.31 |
Mount Type | Grommet Mount |
NAPA Part Number | 4050 |
Number of Diodes/Bulbs | 24 |
Packaging Type | Standard |
Part Number | SS4050-S |
Plug Side One | No Plug |
Plug Side Two | No Plug |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Standards Met | P2|I6|S2|T |
Std Carton Qty | 5 |
Taxonomy | Lights.Stop/Turn/Tail Lights |
Total Depth_MMT | 38.35 |
Total Depth | 1.51 |
Temp. Description | LED Signal Stat S/T/T 4" Round |
Total Height_MMT | 109.47 |
Total Height | 4.31 |
Total Length | .38 |
Total Width_MMT | 109.47 |
Total Width | 4.31 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111158448 |
VMRS | 034-002-000 |
Voltage (VLT) | 12 |
Weight | .43 |
