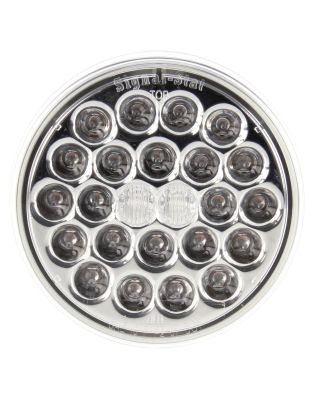

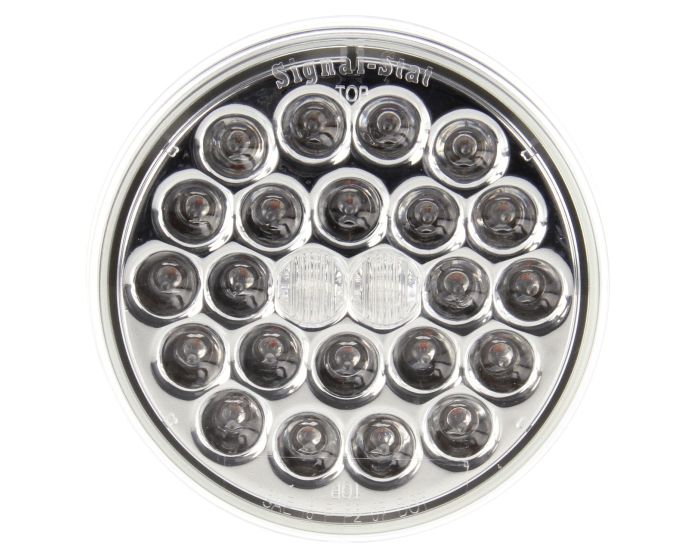

Signal-Stat, LED, Clear/Yellow Round, 24 Diode, Front/Park/Turn, 12V, PL-3
4051A
Popular on owner/operator show trucks|Uses standard right-angle connection|Unique LED array displays a full pattern light output design|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|LEDs have no filament, therefore are extremely resistant to shock and vibration,
- No Plug
- PL-3
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Clear/Yellow Round, 24 Diode, Front/Park/Turn, 12V, PL-3 |
|---|---|
| Brand | Signal-Stat |
| Category | Front/Park/Turn |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 4051A |
| Common Size | 4" |
| Country of Origin | TW |
| Current Major | 0.38 |
| Current Minor | 0.03 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Popular on owner/operator show trucks|Uses standard right-angle connection|Unique LED array displays a full pattern light output design|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|LEDs have no filament, therefore are extremely resistant to shock and vibration, |
| Feature Highlights | No Plug|PL-3|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 2975338 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | PL-3 |
| Lens Color | Clear|Yellow |
| Lens Height_INH | 4.31 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.31 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 4051A |
| Number of Diodes/Bulbs | 24 |
| Packaging Type | Standard |
| Part Number | SS4051A-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 38.35 |
| Total Depth | 1.51 |
| Temp. Description | LED Signal Stat Rear Turn Round |
| Total Height_MMT | 109.47 |
| Total Height | 4.31 |
| Total Width_MMT | 109.47 |
| Total Width | 4.31 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-141 |
| Voltage (VLT) | 12 |
| Weight | 0.52 |
-
Signal-Stat, LED, Clear/Yellow Round, 24 Diode, Front/Park/Turn, 12V, PL-3, Bulk
Part Number:4051A-3
