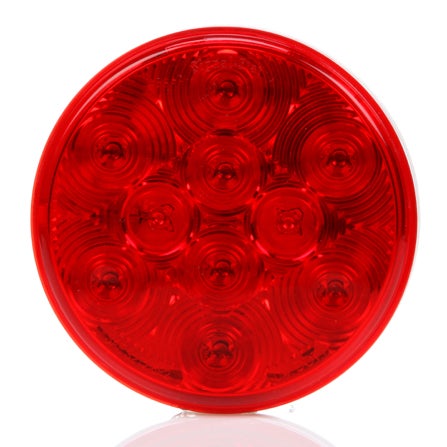

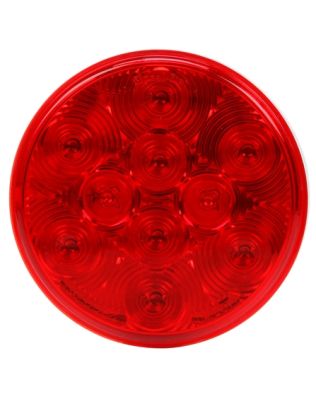

Signal-Stat, LED, Red, Round, 10 Diode, Stop/Turn/Tail, PL-3, 12V

4058

Engineered to feature ten bright and economical light emitting diodes (LEDs)|Uses standard PL-3 connector When properly mounted, exceeds FMVSS-P2 DOT requirements for marker/clearance performance Designed with impact-resistant acrylic material Sealed lens and housing locks moisture out Snap fit grommet requires no screws for installation LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Popular on owner/operator and show trucks|Lamps come with Truck-Lite 2-Year Limited Warranty
  • No Plug
  • PL-3
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Signal-Stat, LED, Red, Round, 10 Diode, Stop/Turn/Tail, PL-3, 12V
New No
Sale No
Best Sellers No
Show Size Chart No
Brand Signal-Stat
Category Stop/Turn/Tail
Warranty 2-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 4058
Country of Origin TW
Current Minor .02
Diamond Shell (Yes/No) No
Features & Benefits Engineered to feature ten bright and economical light emitting diodes (LEDs)|Uses standard PL-3 connector When properly mounted, exceeds FMVSS-P2 DOT requirements for marker/clearance performance Designed with impact-resistant acrylic material Sealed lens and housing locks moisture out Snap fit grommet requires no screws for installation LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Popular on owner/operator and show trucks|Lamps come with Truck-Lite 2-Year Limited Warranty
Feature Highlights No Plug|PL-3|12 V
Housing Material Acrylic
Itm Id 3927987
KIT (Yes/No) No
Lens Shape Round
Lighting Technology LED
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Red
Lens Height_INH 4.27
Lens Material Acrylic
Lens Width_INH 4.27
Mount Type Grommet Mount
NAPA Part Number 4058
Number of Diodes/Bulbs 10
Packaging Type Standard
Part Number SS4058-S
Plug Side One No Plug
Plug Side Two No Plug
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met P2|I6|S2|T
Std Carton Qty 1
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 42.67
Total Depth 1.68
Temp. Description LMP-S/T/T,CM,LED,4",12V,GRMT
Total Height_MMT 108.71
Total Height 4.28
Total Length .12
Total Width_MMT 108.71
Total Width 4.28
UNSPSC/Tariff 25172900
UPC 0735111172932
VMRS 034-002-013
Voltage (VLT) 12
Weight .47
