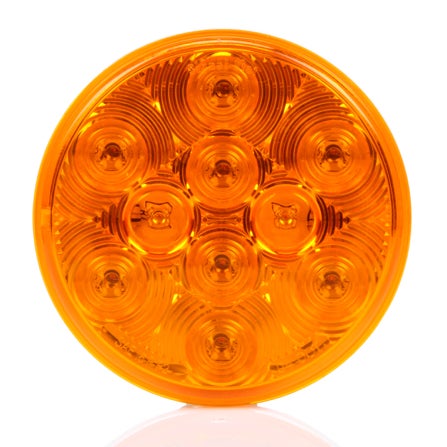

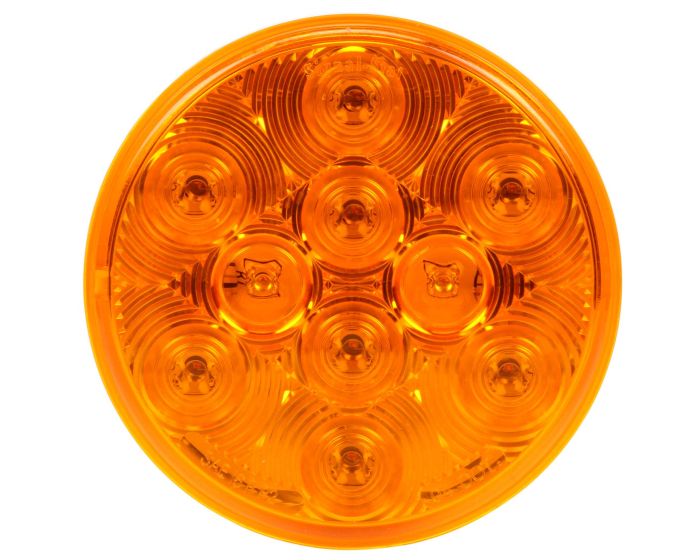

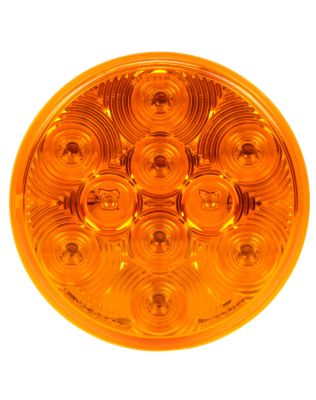

Signal-Stat, LED, Yellow Round, 10 Diode, Front/Park/Turn, 12V, PL-3
4058A
Engineered to feature ten bright and economical light emitting diodes (LEDs)|Uses standard PL-3 connector|Designed with impact-resistant acrylic material|Sealed lens and housing locks moisture out|Snap fit grommet requires no screws for installation|LEDs do not have a filament, therefore are not susceptible to shock andvibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture andcorrosion|Popular on owner/operator and show trucks|Lamps come with Truck-Lite 2-Year Limited Warranty
- No Plug
- PL-3
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Yellow Round, 10 Diode, Front/Park/Turn, 12V, PL-3 |
|---|---|
| Brand | Signal-Stat |
| Category | Front/Park/Turn |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 4058A |
| Common Size | 4" |
| Country of Origin | TW |
| Current Major | 0.12 |
| Current Minor | 0.02 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Engineered to feature ten bright and economical light emitting diodes (LEDs)|Uses standard PL-3 connector|Designed with impact-resistant acrylic material|Sealed lens and housing locks moisture out|Snap fit grommet requires no screws for installation|LEDs do not have a filament, therefore are not susceptible to shock andvibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture andcorrosion|Popular on owner/operator and show trucks|Lamps come with Truck-Lite 2-Year Limited Warranty |
| Feature Highlights | No Plug|PL-3|12 V |
| Housing Material | Acrylic |
| Itm Id | 3928007 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | PL-3 |
| Lens Color | Yellow |
| Lens Height_INH | 4.27 |
| Lens Material | Acrylic |
| Lens Width_INH | 4.27 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 4058A |
| Number of Diodes/Bulbs | 10 |
| Packaging Type | Standard |
| Part Number | SS4058A-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | I6|P|P2 |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Front/Park/Turn Lights |
| Total Depth_MMT | 42.67 |
| Total Depth | 1.68 |
| Total Height_MMT | 108.71 |
| Total Height | 4.28 |
| Total Width_MMT | 108.71 |
| Total Width | 4.28 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-057 |
| Voltage (VLT) | 12 |
| Weight | 0.47 |
