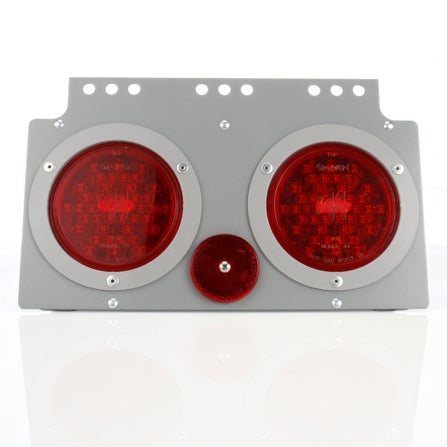

40 Series, LED, S/T/T Light Module, Right Hand Side, Gray Steel, 12V
40627
Features universal mount designed to retrofit a wide variety of vehicles|Kits include metal mounting box with side marker lamp and reflector|Optional mounting gasket available to provide extra seal between module and body|
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, LED, S/T/T Light Module, Right Hand Side, Gray Steel, 12V |
|---|---|
| Brand | TL |
| Category | Light Module |
| Series | 40 Series |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Country of Origin | ZZ |
| Current Minor | 0.08 |
| Features & Benefits | Features universal mount designed to retrofit a wide variety of vehicles|Kits include metal mounting box with side marker lamp and reflector|Optional mounting gasket available to provide extra seal between module and body| |
| Housing Material | Steel |
| Included Light Functions | Stop/Turn/Tail |
| Itm Id | 2126838 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Fit 'N Forget S.S. |
| Lens Color | Red |
| Lens Height_INH | 4.25 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.25 |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Steel |
| Mount Type | Bracket Mount |
| NAPA Part Number | 40627 |
| Number of Lamps | 2 |
| Number of Wires | 4 |
| Packaging Type | Standard |
| Part Number | 40627-4 |
| Plug Side One (Simplified) | Fit 'N Forget S.S. |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | 2 Position Plug |
| Position | Right Hand Side |
| Sealed/Bulb Replaceable | Sealed |
| Side Marker (Yes/No) | No |
| Standards Met | A|I6|P2|S2|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Light Modules |
| Total Depth_MMT | 66.8 |
| Total Depth | 2.63 |
| Temp. Description | LED Mdl 44 Flange Mount Module |
| Total Height_MMT | 196.85 |
| Total Height | 7.75 |
| Total Length | 0.57 |
| Turn Signal (Yes/No) | No |
| Total Width_MMT | 327.15 |
| Total Width | 12.88 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-004-273 |
| Voltage (VLT) | 12 |
| Weight | 2 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.
Replacement Parts / Kit Components
