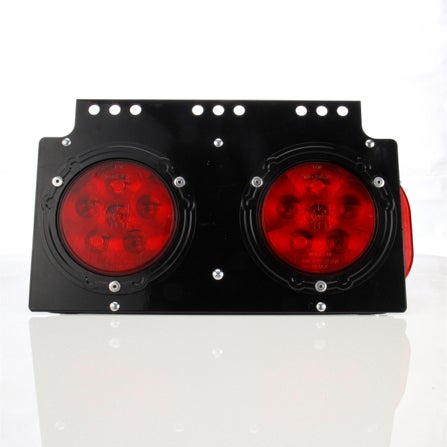

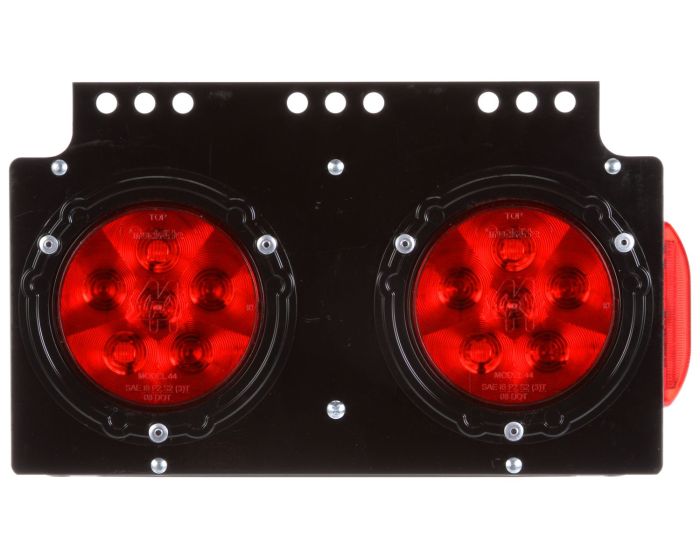

40 Series, LED, M/C & S/T/T Light Module w/ Side Marker, Right Hand Side, Black Steel, 12V

40638

Features universal mount designed to retrofit a wide variety of vehicles|Kits include metal mounting box with side marker lamp and reflector|Optional mounting gasket available to provide extra seal between module and body|
Need To Order By Phone?

(800) - 562 - 5012

Product Name 40 Series, LED, M/C & S/T/T Light Module w/ Side Marker, Right Hand Side, Black Steel, 12V
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Light Module
Series 40 Series
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Current Minor 0.02
Features & Benefits Features universal mount designed to retrofit a wide variety of vehicles|Kits include metal mounting box with side marker lamp and reflector|Optional mounting gasket available to provide extra seal between module and body|
Housing Material Steel
Included Light Functions Marker Clearance|Stop/Turn/Tail
Itm Id 2127005
KIT (Yes/No) No
Lens Shape Round
Lighting Technology LED
Lamp Connection Fit 'N Forget S.S.
Lens Color Red
Lens Height_INH 4.21
Lens Material Polycarbonate
Lens Width_INH 4.21
Mount/Trim Color Black
Mount/Trim Material Steel
Mount Type Bracket Mount
NAPA Part Number 40638
Number of Wires 4
Packaging Type Standard
Part Number 40638-4
Plug Side One (Simplified) Fit 'N Forget S.S.
Plug Side One Fit 'N Forget S.S.
Plug Side Two 2 Position Plug
Position Right Hand Side
Sealed/Bulb Replaceable Sealed
Side Marker (Yes/No) Yes
Standards Met A|I6|P2|S2|T
Std Carton Qty 1
Taxonomy Lights.Light Modules
Total Depth_MMT 66.8
Total Depth 2.63
Temp. Description LED Super Mdl 44 S/T/T Module,
Total Height_MMT 196.85
Total Height 7.75
Total Length 0.24
Turn Signal (Yes/No) No
Total Width_MMT 327.15
Total Width 12.88
UNSPSC/Tariff 25172900
UPC 7.35111E+11
VMRS 034-004-273
Voltage (VLT) 12
Weight 7
