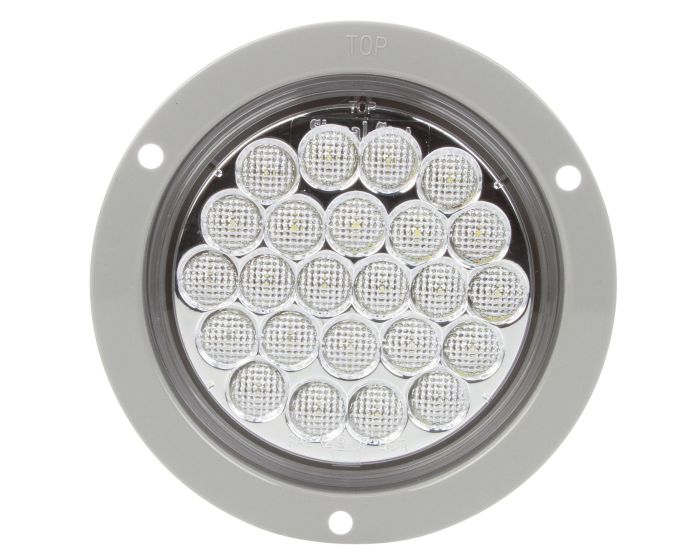

Product Name | Signal-Stat, LED, Clear Round, 24 Diode, Back-Up Light, Gray Flange, PL-3, 12V |
---|---|
Brand | Signal-Stat |
Category | Back-Up Light |
Series | Signal-Stat |
Warranty | 2-Year |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Common Root | 4063C |
Country of Origin | TW |
Current_AMP | .15 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Housing and flange are molded together to form one piece|Uses standard right angle PL-3 connection|When properly mounted, exceeds FMVSS DOT requirements for back-up|Unique LED array displays full pattern light output design|Must be used as a two-lamp system for back-up|Designed with impact-resistant polycarbonate|LEDs do not have a filament, therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb|Epoxy-encapsulated electronics prevents damage from moisture and corrosion|Lamp comes with Truck-Lite 2-Year Limited Warranty |
Feature Highlights | No Plug|PL-3|12 V |
Housing Material | Polycarbonate |
Itm Id | 3897010 |
KIT (Yes/No) | No |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | PL-3 |
Lamp Connection (Simplified) | PL-3 |
Lens Color | Clear |
Lens Height_INH | 4 |
Lens Material | Polycarbonate |
Lens Width_INH | 4 |
Mount/Trim Color | Gray |
Mount/Trim Material | Polycarbonate |
Mount Type | Flange Mount |
NAPA Part Number | 4063C |
Number of Diodes/Bulbs | 24 |
Packaging Type | Standard |
Part Number | SS4063C-S |
Plug Side One | No Plug |
Plug Side Two | No Plug |
Sealed/Bulb Replaceable | Sealed |
Standards Met | R |
Std Carton Qty | 1 |
Taxonomy | Lights.Back-Up Lights |
Total Depth_MMT | 43.18 |
Total Depth | 1.7 |
Temp. Description | LMP-B/U,LED,12V,2LMP-SYS,FLNGE |
Total Height_MMT | 138.68 |
Total Height | 5.46 |
Total Width_MMT | 138.68 |
Total Width | 5.46 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111189701 |
VMRS | 034-003-074 |
Voltage (VLT) | 12 |
Weight | .53 |
