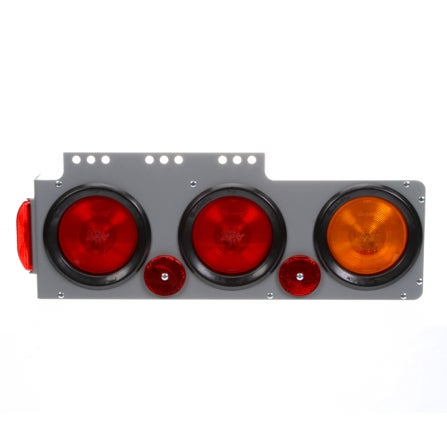

40 Series, Incandescent, S/T/T Light Module w/ Side Marker, Left Hand Side, Black PVC, Turn Signal, 12V
40762
Popular on straight truck applications|Features metal module box with side marker and turn signal lamps
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 40 Series, Incandescent, S/T/T Light Module w/ Side Marker, Left Hand Side, Black PVC, Turn Signal, 12V |
|---|---|
| Brand | TL |
| Category | Light Module |
| Series | 40 Series |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Country of Origin | ZZ |
| Current Minor | 0.48 |
| Features & Benefits | Popular on straight truck applications|Features metal module box with side marker and turn signal lamps |
| Housing Material | Steel |
| Included Light Functions | Stop/Turn/Tail|Turn Signal |
| Itm Id | 2129246 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lens Color | Red|Yellow |
| Lens Height_INH | 3.9 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 3.9 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Bracket Mount |
| NAPA Part Number | 40762 |
| Number of Lamps | 4 |
| Number of Wires | 6 |
| Packaging Type | Standard |
| Part Number | 40762-4 |
| Plug Side One (Simplified) | PL-3 |
| Plug Side One | Right Angle PL-3 |
| Plug Side Two | 2 Position Plug |
| Position | Left Hand Side |
| Sealed/Bulb Replaceable | Sealed |
| Side Marker (Yes/No) | Yes |
| Standards Met | I6|A|P2|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Light Modules |
| Total Depth_MMT | 63.5 |
| Total Depth | 2.5 |
| Temp. Description | Mdl 40 Metal Module S/T/T and |
| Total Height_MMT | 196.85 |
| Total Height | 7.75 |
| Total Length | 2.1 |
| Turn Signal (Yes/No) | Yes |
| Total Width_MMT | 512.83 |
| Total Width | 20.19 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-000 |
| Voltage (VLT) | 12 |
| Weight | 9.6 |
