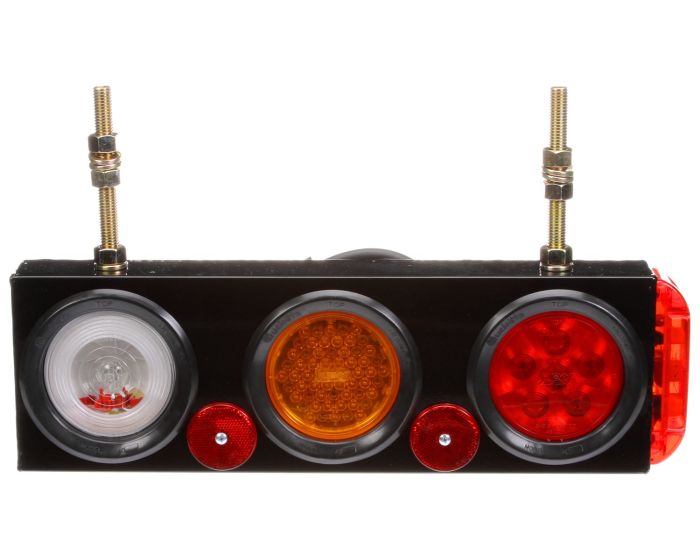

40 Series, LED/Incandescent, Back-Up & S/T/T Light Module w/ Side Marker,, Black PVC, Turn Signal, 12V

40808

Popular on straight truck applications|Features metal module box with side marker and back-up lamps
Need To Order By Phone?

(800) - 562 - 5012

Product Name 40 Series, LED/Incandescent, Back-Up & S/T/T Light Module w/ Side Marker,, Black PVC, Turn Signal, 12V
Brand TL
Category Light Module
Series 40 Series
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Country of Origin ZZ
Current Minor 0.02
Features & Benefits Popular on straight truck applications|Features metal module box with side marker and back-up lamps
Housing Material Steel
Included Light Functions Stop/Turn/Tail|Back-Up|Turn Signal
Itm Id 2129721
KIT (Yes/No) No
Lens Shape Round
Lighting Technology LED|Incandescent
Lamp Connection PL-2
Lens Color Clear|Red|Yellow
Lens Height_INH 3.9
Lens Material Polycarbonate
Lens Width_INH 3.9
Mount/Trim Color Black
Mount/Trim Material PVC
Mount Type 2 Stud Mount
NAPA Part Number 40808
Number of Lamps 4
Number of Wires 5
Packaging Type Standard
Part Number 40808-4
Plug Side One (Simplified) PL-2
Plug Side One Straight PL-2
Plug Side Two Ring Terminal
Sealed/Bulb Replaceable Sealed
Side Marker (Yes/No) Yes
Std Carton Qty 1
Taxonomy Lights.Light Modules
Total Depth_MMT 63.5
Total Depth 2.5
Temp. Description LED 3 Lamp Module USPS, RH
Total Height_MMT 162.05
Total Height 6.38
Total Length 0.24
Turn Signal (Yes/No) Yes
Total Width_MMT 538.48
Total Width 21.2
UNSPSC/Tariff 25172900
UPC 7.35111E+11
VMRS 034-004-273
Voltage (VLT) 12
Weight 20
