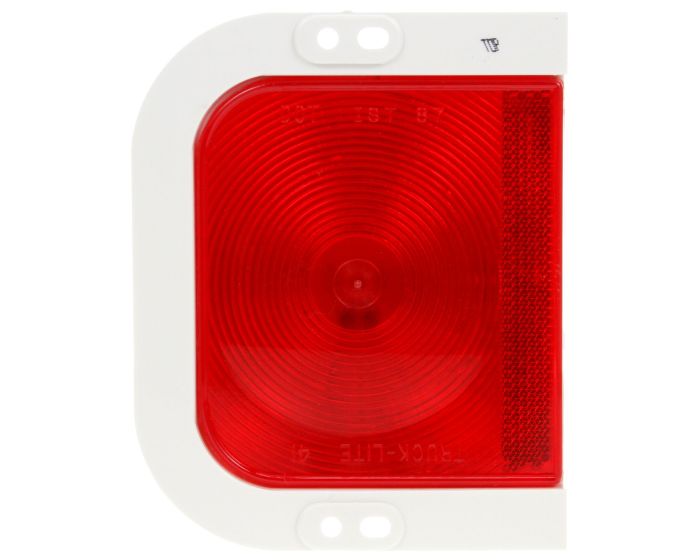

41 Series, Left Hand Side, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, 12V

41202R

Mounts in 783" x 443" hole|Requires separate reflector to meet legal requirements
  • No Plug
  • PL-3
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name 41 Series, Left Hand Side, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, White Flange Mount, PL-3, 12V
Brand TL
Category Stop/Turn/Tail
Series 41 Series
Warranty 1-Year
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Root 41202R
Country of Origin ZZ
Current Minor .48
Diamond Shell (Yes/No) No
Features & Benefits Mounts in 783" x 443" hole|Requires separate reflector to meet legal requirements
Feature Highlights No Plug|PL-3|12 V
Itm Id 2131590
KIT (Yes/No) No
Lens Shape Rectangular
Lighting Technology Incandescent
Lamp Connection PL-3
Lamp Connection (Simplified) PL-3
Lens Color Red
Lens Height_INH 4.13
Lens Material Polycarbonate
Lens Width_INH 3.71
Mount/Trim Color White
Mount/Trim Material Polycarbonate
Mount Type Flange Mount
NAPA Part Number 41202R
Number of Diodes/Bulbs 1
Packaging Type Standard
Part Number 41202R4
Plug Side One No Plug
Plug Side Two No Plug
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met I|S|T
Std Carton Qty 1
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 45.72
Total Depth 1.8
Temp. Description Mdl 41 S/T/T and Clearance Lam
Total Height_MMT 137.16
Total Height 5.4
Total Length 2.1
Total Width_MMT 223.52
Total Width 8.8
UNSPSC/Tariff 25172900
UPC 0735111013341
VMRS 034-002-013
Voltage (VLT) 12
Weight .41
Currently no product available
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
