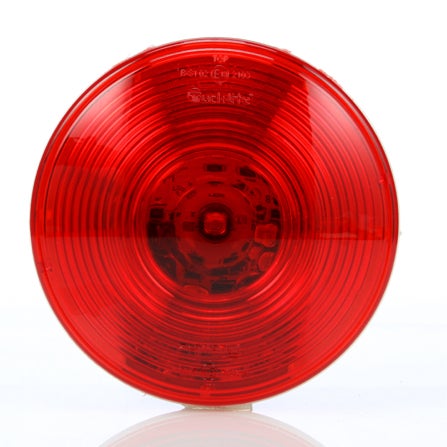

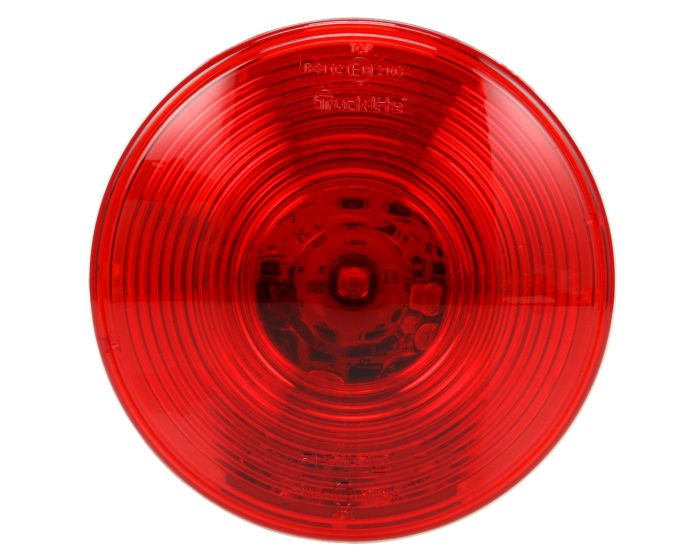

Product Name | 44 Series, European Approved, LED, Red, Round, 1 Diode, Stop/Turn/Tail, Black Grommet Mount, Hardwired, .180 Bullet, 12-24V, Kit |
---|---|
Brand | TL |
Category | Stop/Turn/Tail |
Series | 44 Series |
Warranty | 3-Year |
Country of Origin | ZZ |
Current Minor | .02 |
Diamond Shell (Yes/No) | No |
Features & Benefits | Electronics completely sealed in epoxy to resist moisture and corrosion|Lamp hardwired - wire leads incorporate 180 jacketed bullet terminals|Sealed polycarbonate lens and housing|Voltage 10v to 30v |
Feature Highlights | Hardwired|Kit|.180 Bullet |
Itm Id | 2978694 |
KIT (Yes/No) | Yes |
Lens Shape | Round |
Lighting Technology | LED |
Lamp Connection | Hardwired |
Lens Color | Red |
Lens Height_INH | 4.31 |
Lens Material | Polycarbonate |
Lens Width_INH | 4.31 |
Mount/Trim Color | Black |
Mount/Trim Material | PVC |
Mount Type | Grommet Kit |
NAPA Part Number | 44121R |
Number of Diodes/Bulbs | 1 |
Number of Wires | 3 |
Packaging Type | Standard |
Part Number | 44121R4 |
Plug Side One | Hardwired |
Plug Side Two | .180 Bullet |
Reflectorized (Yes/No) | No |
Sealed/Bulb Replaceable | Sealed |
Std Carton Qty | 1 |
Taxonomy | Lights.Stop/Turn/Tail Lights |
Total Depth_MMT | 29.21 |
Total Depth | 1.15 |
Temp. Description | LED Mdl 44 Stop/Rear Grommet |
Total Height_MMT | 109.47 |
Total Height | 4.31 |
Total Length | .23 |
Total Width_MMT | 109.47 |
Total Width | 4.31 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111154358 |
VMRS | 034-001-063 |
Voltage (VLT) | 12|24 |
Weight | .37 |
