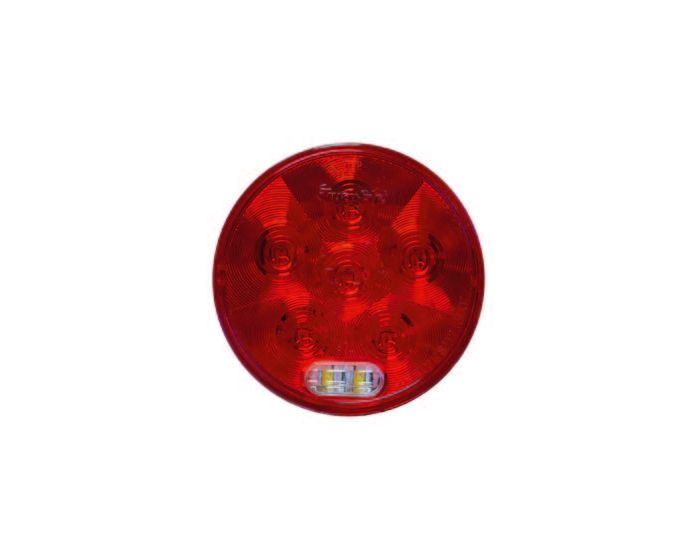

Super 44, LED, Round, Red/Clear 8 Diode Stop/Turn/Tail & Back-Up, Gray Grommet Mount, Integral Fit'N Forget Connector, 12V

44557R

Need To Order By Phone?

(800) - 562 - 5012

Product Name Super 44, LED, Round, Red/Clear 8 Diode Stop/Turn/Tail & Back-Up, Gray Grommet Mount, Integral Fit'N Forget Connector, 12V
ViewPoint (Y/N) No
New No
Sale No
Best Sellers No
Show Size Chart No
Brand TL
Business Unit Truck-Lite (NA)
Legacy Catalog Number 44557R
Warranty Lifetime
Compliance Family FMVSS 108|CMVSS 108|DOT|SAE
Common Size 4"
Current Minor 0.02
Diamond Shell (Yes/No) No
Features & Benefits Offers the same safety and low-maintenance benefits of existing LED S/T/T and BU lights now in one package|Complies with FMVSS requirement for minimum of 75 cm2 of luminous red area|Saves space in inventory when stocking a two-in-one product|New combination lamps are the same size as existing Truck-Lite Model 44 lights, so they fit into existing mounting holes|Lower-cost system when replacing other hardwired 44 products
Housing Material Polycarbonate
KIT (Yes/No) No
Lens Shape Round
Lighting Technology LED
Lamp Connection Fit 'N Forget 4 Pin S.S.
Lens Color Red|Clear
Lens Height_INH 4.35
Lens Material Polycarbonate
Lens Width_INH 4.35
Mounting Connector Diameter_INH 4"
Mount/Trim Color Gray
Mount Type Grommet Mount
Number of Diodes/Bulbs 8
Number of Wires 0
Packaging Type Standard
Part Number 44555R
Reflectorized (Yes/No) No
Sealed/Bulb Replaceable Sealed
Standards Met I6|P2|R|S2|T2
Std Carton Qty 1
Taxonomy Lights.Stop/Turn/Tail Lights
Total Depth_MMT 35.4
Total Depth 1.39
Total Height_MMT 110.5
Total Height 4.35
Total Width_MMT 110.5
Total Width 4.35
Voltage (VLT) 12
