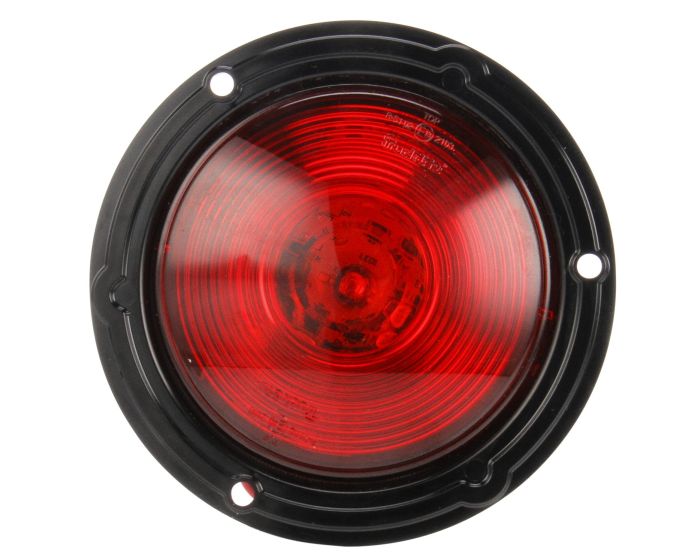

44 Series, European Approved, LED, Red, Round, 1 Diode, Stop/Turn/Tail, Black Flange Mount, Hardwired, .180 Bullet, 12-24V
44936R
Electronics completely sealed in epoxy to resist moisture and corrosion|Lamp hardwired - wire leads incorporate 180 jacketed bullet terminals|Sealed polycarbonate lens and housing|Voltage 10v to 30v
- Hardwired
- .180 Bullet
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 44 Series, European Approved, LED, Red, Round, 1 Diode, Stop/Turn/Tail, Black Flange Mount, Hardwired, .180 Bullet, 12-24V |
|---|---|
| Brand | TL |
| Category | Stop/Turn/Tail |
| Series | 44 Series |
| Warranty | 3-Year |
| Country of Origin | ZZ |
| Current Minor | .02 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Electronics completely sealed in epoxy to resist moisture and corrosion|Lamp hardwired - wire leads incorporate 180 jacketed bullet terminals|Sealed polycarbonate lens and housing|Voltage 10v to 30v |
| Feature Highlights | Hardwired|.180 Bullet |
| Itm Id | 2910551 |
| KIT (Yes/No) | No |
| Lens Shape | Round |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | 4.31 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.31 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Flange Mount |
| NAPA Part Number | 44936R |
| Number of Diodes/Bulbs | 1 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 44936R4 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 44.45 |
| Total Depth | 1.75 |
| Temp. Description | LED Mdl 44 Stop/Rear Lamp & Bl |
| Total Height_MMT | 139.7 |
| Total Height | 5.5 |
| Total Length | .23 |
| Total Width_MMT | 139.7 |
| Total Width | 5.5 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111154389 |
| VMRS | 034-002-041 |
| Voltage (VLT) | 12|24 |
| Weight | .2 |
