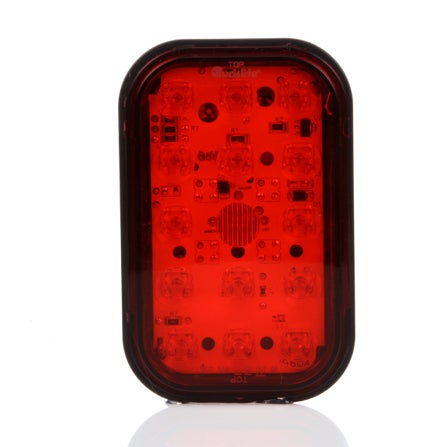

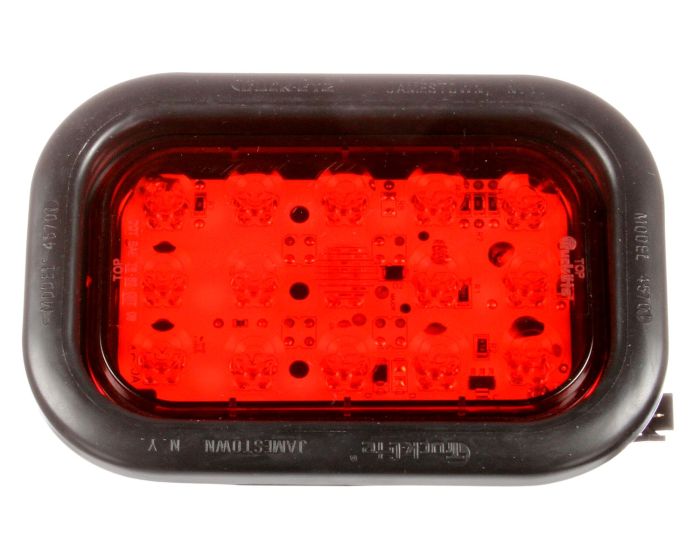

45 Series, LED, Red, 15 Diode, LLV Stop/Turn/Tail, Black Grommet Mount, Hardwired, Packard Connector, 12V, Kit
45032R
Direct replacement for approved lamps on the United States Postal Service LLV|Designed for mounting on a 7 - 11 degree rollback from the vertical plane|Mount vertical only
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 45 Series, LED, Red, 15 Diode, LLV Stop/Turn/Tail, Black Grommet Mount, Hardwired, Packard Connector, 12V, Kit |
|---|---|
| Brand | TL |
| Category | LLV Stop/Turn/Tail |
| Series | 45 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Current Minor | 0.04 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Direct replacement for approved lamps on the United States Postal Service LLV|Designed for mounting on a 7 - 11 degree rollback from the vertical plane|Mount vertical only |
| Housing Material | Polycarbonate |
| Itm Id | 2948276 |
| KIT (Yes/No) | Yes |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red |
| Lens Height_INH | 5.31 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 3.4 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Kit |
| NAPA Part Number | 45032R |
| Number of Diodes/Bulbs | 15 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | 45032R4 |
| Plug Side One | Hardwired |
| Plug Side Two | Packard Connector 12015793 |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.LLV |
| Total Depth_MMT | 36.07 |
| Total Depth | 1.42 |
| Temp. Description | LED Mdl 45 LLV Hardwired Kit |
| Total Height_MMT | 134.87 |
| Total Height | 5.31 |
| Total Length | 0.5 |
| Total Width_MMT | 86.36 |
| Total Width | 3.4 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-041 |
| Voltage (VLT) | 12 |
| Weight | 0.72 |
