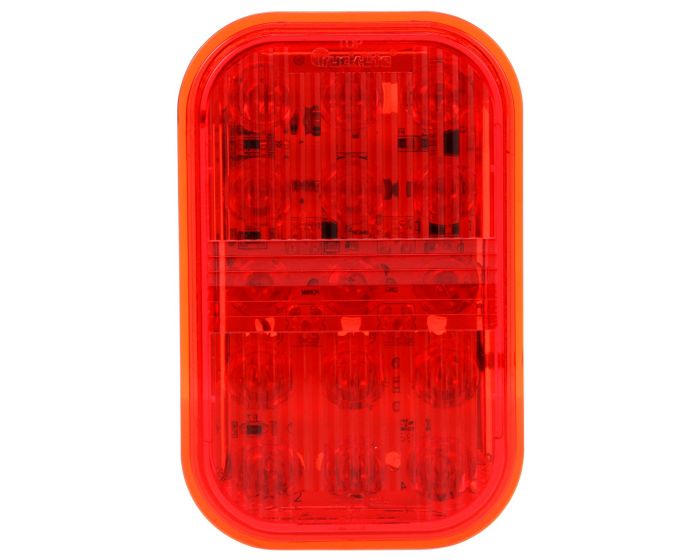

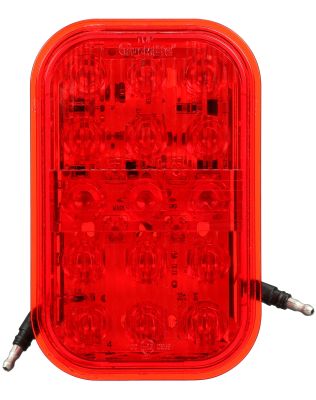

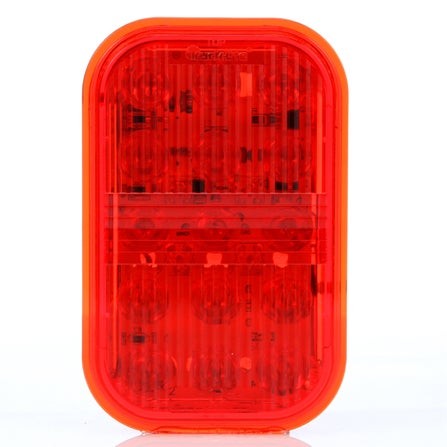

45 Series, European Approved, LED, Fog Light, 19 Diode, Rectangular, Red Polycarbonate, Hardwired, .180 Bullet Terminal, 12-24V, Kit

45041R

OmniVolt universal lighting products address increasing vehicle power demands by operating equally in electrical systems that range from 10 to 30 volts|Lamps are hardwired with standard 180 molded bullet connectors|Module receptacle wires with ring terminals available for retrofitting LED lamps to existing modules|Direct pin-to-circuit board solders assure vibration-resistant contacts|Electronics completely sealed in epoxy to resist corrosion and moisture|Low current draw, leaving more power for other vehicle requirements|Sonically sealed lens and housing|LEDs are less susceptible to shock and vibration|Approved to comply with ECE regulations for Rear position/stop, direction indicator and rear fog functions
  • Hardwired
  • Kit
  • .180 Bullet
Brand TL
Business Unit Truck-Lite (NA)
Category Fog Light
Common Size 3"x5"
Country of Origin ZZ
Current Major 0.24
Features & Benefits OmniVolt universal lighting products address increasing vehicle power demands by operating equally in electrical systems that range from 10 to 30 volts|Lamps are hardwired with standard 180 molded bullet connectors|Module receptacle wires with ring terminals available for retrofitting LED lamps to existing modules|Direct pin-to-circuit board solders assure vibration-resistant contacts|Electronics completely sealed in epoxy to resist corrosion and moisture|Low current draw, leaving more power for other vehicle requirements|Sonically sealed lens and housing|LEDs are less susceptible to shock and vibration|Approved to comply with ECE regulations for Rear position/stop, direction indicator and rear fog functions
Housing Material Polycarbonate
Itm Id 2143451
KIT (Yes/No) Yes
Lamp Connection Hardwired
Lamp Connection (Simplified) Hardwired
Lens Color Red
Lens Height (INH) 5.31
Lens Material Polycarbonate
Lens Shape Rectangular
Lens Width (INH) 3.4
Lighting Technology LED
Mount Type Grommet Kit
Mount/Trim Color Black
Mount/Trim Material PVC
NAPA Part Number 45041R
Number of Diodes/Bulbs 19
Number of Wires 2
Packaging Type Standard
Part Number 45041R4
Plug Side One Hardwired
Plug Side Two .180 Bullet
Sealed/Bulb Replaceable Sealed
Series 45 Series
Std Carton Qty 1
Taxonomy Lights.Fog & Driving Lights
Temp. Description LED European Rear Fog Lamp Kit
Total Depth 3.4
Total Depth (MMT) 86.36
Total Height 1.42
Total Height (MMT) 36.07
Total Width 5.31
Total Width (MMT) 134.87
UNSPSC/Tariff 25172900
UPC 735111103301
VMRS 034-002-041
Voltage (VLT) 12|24
Warranty Lifetime
Weight 0.4
Feature Highlights Hardwired|Kit|.180 Bullet
Image Highlighters TL.jpg|Lifetime.jpg|LED.jpg
Label 1 No
Label 2 No
Label 3 No
Show Size Chart No
Currently no product available
