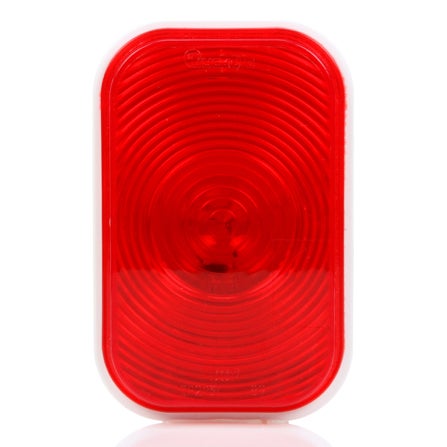

45 Series, CHMSL Products, Incandescent, High Mounted Stop Light, 1 bulb, Rectangular Red Polycarbonate, PL-3, 12V
45207R
Features high mount stop function when center mounted on the top rear of the vehicle|Heavy duty shock-mounted bulb|Recommended for use in center high mounted stop lamp applications
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 45 Series, CHMSL Products, Incandescent, High Mounted Stop Light, 1 bulb, Rectangular Red Polycarbonate, PL-3, 12V |
|---|---|
| Brand | TL |
| Category | High Mounted Stop Lights |
| Series | 45 Series |
| Warranty | 1-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Size | 3"x5" |
| Country of Origin | ZZ |
| Features & Benefits | Features high mount stop function when center mounted on the top rear of the vehicle|Heavy duty shock-mounted bulb|Recommended for use in center high mounted stop lamp applications |
| Housing Material | Polycarbonate |
| Itm Id | 2721346 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | Incandescent |
| Lamp Connection | PL-3 |
| Lens Color | Red |
| Lens Height_INH | 2.98 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 5.1 |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| NAPA Part Number | 45207R |
| Number of Diodes/Bulbs | 1 |
| Packaging Type | Standard |
| Part Number | 45207R4 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Sealed/Bulb Replaceable | Sealed |
| Std Carton Qty | 1 |
| Taxonomy | Lights.High-Mounted Stop Lights |
| Total Depth_MMT | 49.02 |
| Total Depth | 1.93 |
| Temp. Description | Mdl 45 Center High Mount Stop |
| Total Height_MMT | 112.27 |
| Total Height | 4.42 |
| Total Length | 1.44 |
| Total Width_MMT | 159.77 |
| Total Width | 6.29 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.35111E+11 |
| VMRS | 034-002-040 |
| Voltage (VLT) | 12 |
| Weight | 0.4 |
