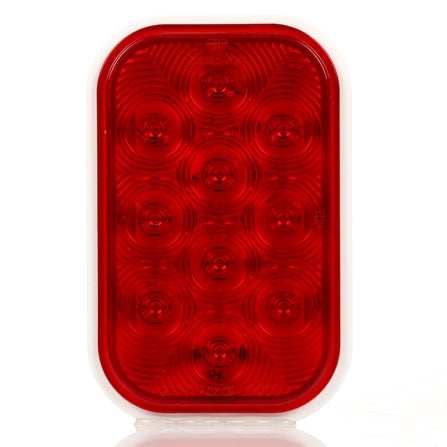

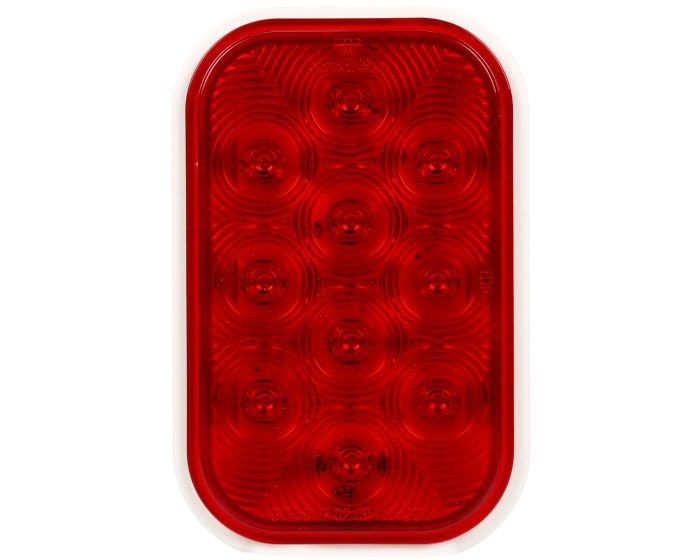

Signal-Stat, LED, Red, Rectangular, 10 Diode, Stop/Turn/Tail, PL-3, 12V
4558
Uses standard right angle PL-3 connection|10 diode pattern Unique LED array displays full pattern light output Epoxy-encapsulated electronics
- No Plug
- PL-3
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Red, Rectangular, 10 Diode, Stop/Turn/Tail, PL-3, 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Stop/Turn/Tail |
| Warranty | 2-Year |
| Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
| Common Root | 4558 |
| Country of Origin | TW |
| Current Minor | .03 |
| Diamond Shell (Yes/No) | No |
| Features & Benefits | Uses standard right angle PL-3 connection|10 diode pattern Unique LED array displays full pattern light output Epoxy-encapsulated electronics |
| Feature Highlights | No Plug|PL-3|12 V |
| Housing Material | Polycarbonate |
| Itm Id | 3928023 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | LED |
| Lamp Connection | PL-3 |
| Lamp Connection (Simplified) | PL-3 |
| Lens Color | Red |
| Lens Height_INH | 5.01 |
| Lens Material | Acrylic |
| Lens Width_INH | 3.4 |
| Mount Type | Grommet Mount |
| NAPA Part Number | 4558 |
| Number of Diodes/Bulbs | 10 |
| Packaging Type | Standard |
| Part Number | SS4558-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Reflectorized (Yes/No) | No |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|I6|S2|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Stop/Turn/Tail Lights |
| Total Depth_MMT | 39.12 |
| Total Depth | 1.54 |
| Temp. Description | LMP-S/T/T,RED,12V,MDL45,GRMT |
| Total Height_MMT | 87.12 |
| Total Height | 3.43 |
| Total Length | .28 |
| Total Width_MMT | 134.62 |
| Total Width | 5.3 |
| UNSPSC/Tariff | 25172900 |
| UPC | 0735111172932 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | .47 |
