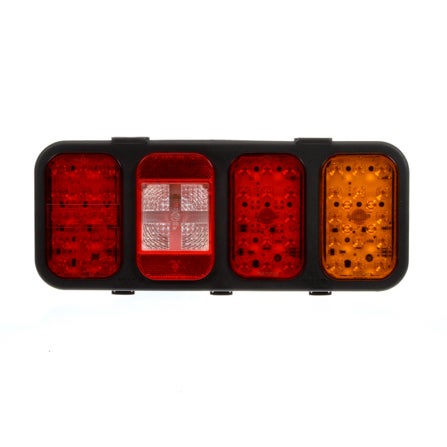

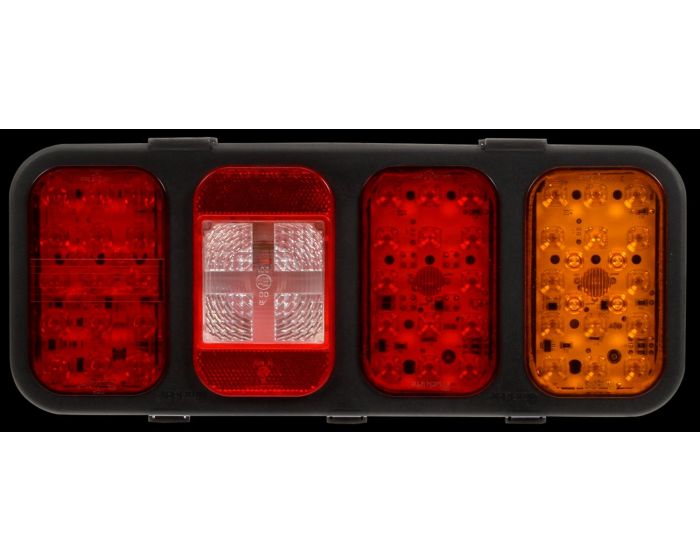

45 Series, Incandescent/LED, Back-Up & Rear Fog Lights & S/T & Light Module, Left Hand Side, Black Polypropylene, Turn Signal, 12V
45631
Features weather-resistant synthetic rubber and polypropylene construction|Four-lamp module includes one each mult-volt LED Rear position/stop lamp, LED direction indicator lamp, LED rear fog lamp and sealed reverse lamp|Mounts on four studs, each set on 78mm centers, 219mm apart|Module includes a 125m harness
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 45 Series, Incandescent/LED, Back-Up & Rear Fog Lights & S/T & Light Module, Left Hand Side, Black Polypropylene, Turn Signal, 12V |
|---|---|
| Brand | TL |
| Category | Light Module |
| Series | 45 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Current Minor | 0.03 |
| Features & Benefits | Features weather-resistant synthetic rubber and polypropylene construction|Four-lamp module includes one each mult-volt LED Rear position/stop lamp, LED direction indicator lamp, LED rear fog lamp and sealed reverse lamp|Mounts on four studs, each set on 78mm centers, 219mm apart|Module includes a 125m harness |
| Housing Material | Rubber |
| Included Light Functions | Back-Up|Turn Signal|Rear Fog Lamp|Stop/Turn/Tail |
| Itm Id | 2146425 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| Lighting Technology | LED|Incandescent |
| Lamp Connection | Hardwired|PL-2 |
| Lens Color | Red|Clear|Yellow |
| Lens Height_INH | 5.1 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 3.22 |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polypropylene |
| Mount Type | 4 Stud Mount |
| NAPA Part Number | 45631 |
| Number of Lamps | 4 |
| Number of Wires | 6 |
| Packaging Type | Standard |
| Part Number | 45631-4 |
| Plug Side One (Simplified) | PL-2 |
| Plug Side One | PL-2 |
| Plug Side Two | Blunt Cut |
| Position | Left Hand Side |
| Sealed/Bulb Replaceable | Sealed |
| Side Marker (Yes/No) | No |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Light Modules |
| Total Depth_MMT | 71.37 |
| Total Depth | 2.81 |
| Temp. Description | Module Fog Lamp12 Volt LH |
| Total Height_MMT | 152.91 |
| Total Height | 6.02 |
| Total Length | 0.27 |
| Turn Signal (Yes/No) | Yes |
| Total Width_MMT | 273.05 |
| Total Width | 10.75 |
| UNSPSC/Tariff | 25172900 |
| UPC | 735111103462 |
| VMRS | 034-006-008 |
| Voltage (VLT) | 12 |
| Weight | 3.17 |
