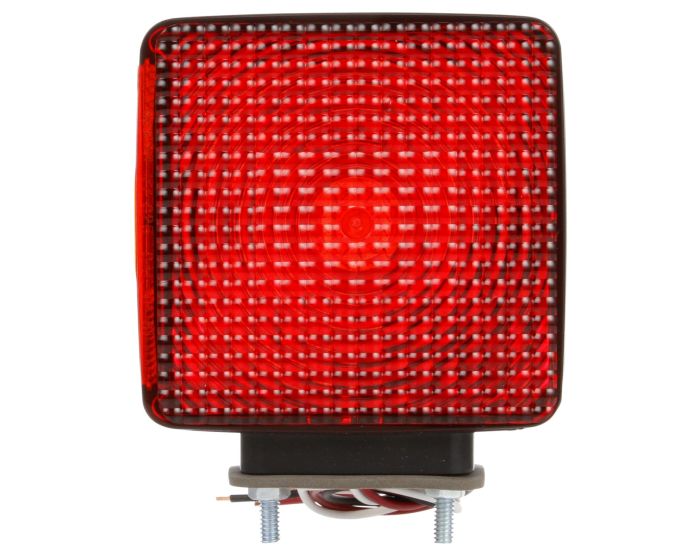

Product Name | Signal-Stat, Incandescent, Red/Yellow Square, 1 Bulb, Dual Face, Vertical Mount, Side Marker, 2 Wire, Pedestal Light, 2 Stud, Stripped End |
---|---|
Brand | Signal-Stat |
Category | Pedestal Light |
Series | Signal-Stat |
Warranty | 1-Year |
Common Size | 4"x4" |
Country of Origin | ZZ |
Current Minor | 0.5 |
Features & Benefits | Functions as turn signal, parking and side marker lamp, with reflector|ABS housing will not rust or corrode|Shock/Mount bulb socket|Includes separate ground wire for installation|Fits right and left side applications |
Housing Color | Black |
Housing Material | ABS |
Itm Id | 1981357 |
KIT (Yes/No) | No |
Lens Shape | Square |
Lighting Technology | Incandescent |
Lamp Connection | Hardwired |
Lens Color | Red|Yellow |
Lens Height_INH | 4.75 |
Lens Material | Acrylic |
Lens Width_INH | 4.75 |
Mounting Orientation | Vertical |
Mount Type | 2 Stud Mount |
NAPA Part Number | 4742 |
Number of Diodes/Bulbs | 1 |
Number of Wires | 2 |
Packaging Type | Standard |
Part Number | SS4742-S |
Plug Side One | Hardwired |
Plug Side Two | Stripped End |
Position | Universal |
Sealed/Bulb Replaceable | Bulb Replaceable |
Side Marker (Yes/No) | Yes |
Standards Met | A|I|S|T|P2 |
Std Carton Qty | 1 |
Taxonomy | Lights.Pedestal Lights |
Total Depth_MMT | 60.2 |
Total Depth | 2.37 |
Temp. Description | Universal Dual Face T/S Bulb R |
Total Height_MMT | 128.52 |
Total Height | 5.06 |
Total Length | 2.1 |
Total Width_MMT | 120.65 |
Total Width | 4.75 |
UNSPSC/Tariff | 25172900 |
UPC | 7.24956E+11 |
VMRS | 034-003-071 |
Voltage (VLT) | 12 |
Weight | 0.92 |
