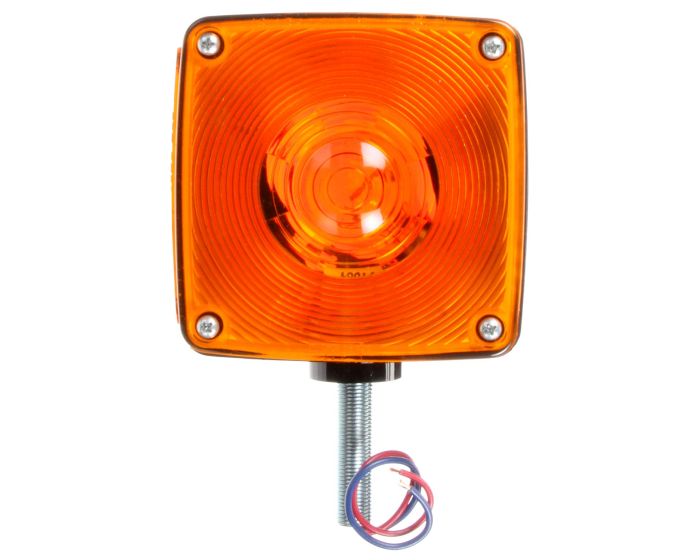

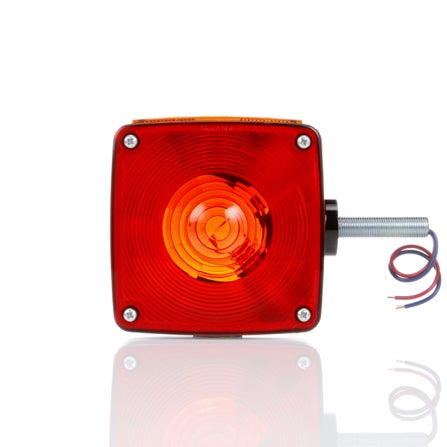

Signal-Stat, Incandescent, Red/Yellow Square, 2 Bulb, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 1 Stud, Stripped End
4800
Black housed version is a popular Western Star replacement|Chrome housed version is a popular replacement for Volvo and Peterbilt|Combination park, turn, side marker and reflex reflector|Standard on many OEM applications|High-impact non-corrosive polycarbonate housing|Side marker and reflector included in design
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Incandescent, Red/Yellow Square, 2 Bulb, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 1 Stud, Stripped End |
|---|---|
| Brand | Signal-Stat |
| Category | Pedestal Light |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Common Size | 4"x4" |
| Country of Origin | ZZ |
| Current Minor | 0.5 |
| Features & Benefits | Black housed version is a popular Western Star replacement|Chrome housed version is a popular replacement for Volvo and Peterbilt|Combination park, turn, side marker and reflex reflector|Standard on many OEM applications|High-impact non-corrosive polycarbonate housing|Side marker and reflector included in design |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Itm Id | 1982481 |
| KIT (Yes/No) | No |
| Lens Shape | Square |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Red|Yellow |
| Lens Height_INH | 4.62 |
| Lens Material | Acrylic |
| Lens Width_INH | 4.62 |
| Mounting Orientation | Vertical |
| Mount Type | 1 Stud Mount |
| NAPA Part Number | 4800 |
| Number of Diodes/Bulbs | 2 |
| Number of Wires | 2 |
| Packaging Type | Standard |
| Part Number | SS4800-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Position | Universal |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Side Marker (Yes/No) | Yes |
| Standards Met | I6|A |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Pedestal Lights |
| Total Depth_MMT | 76.2 |
| Total Depth | 3 |
| Total Height_MMT | 119.38 |
| Total Height | 4.7 |
| Total Length | 2.1 |
| Total Width_MMT | 117.35 |
| Total Width | 4.62 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.24956E+11 |
| VMRS | 034-003-071 |
| Voltage (VLT) | 12 |
| Weight | 1.2 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.

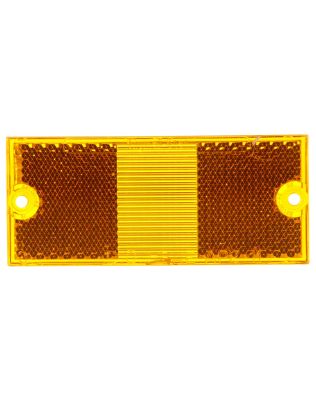

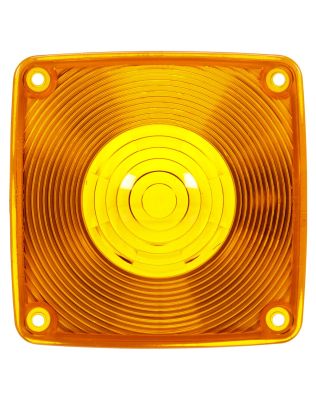

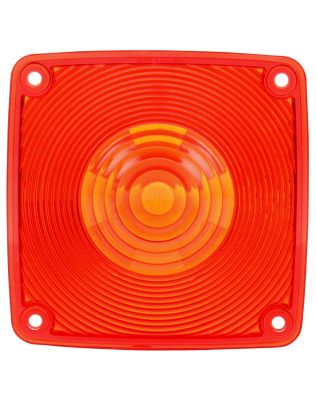

Replacement Parts / Kit Components
