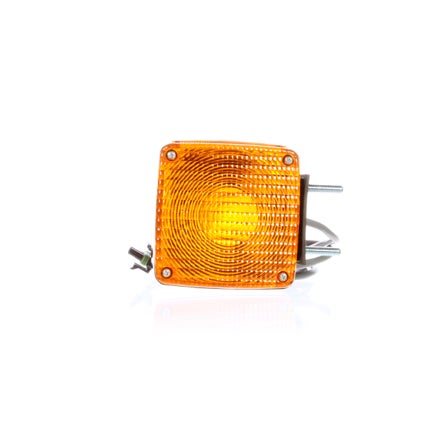

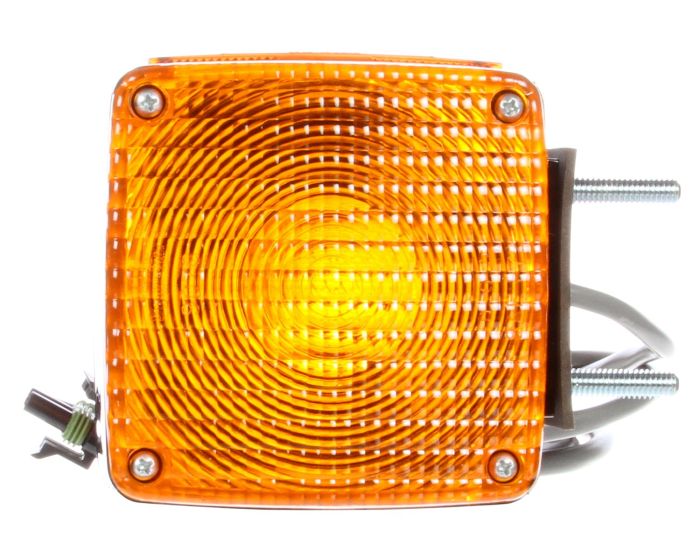

Signal-Stat, Incandescent, Yellow Square, 2 Bulb, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 2 Stud, Packard 12015791/Packard 12015792
4805AAY118
4805AAY115 includes OEM 7" harness that mates with truck harness - simplifying replacement|4805AAY118 included 75" OEM mating harness|Dual optic lens|Polycarbonate lens and housing|Side marker and reflector included in design|Mounting pad included|Two 5/16" studs on 2" centers
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Incandescent, Yellow Square, 2 Bulb, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 2 Stud, Packard 12015791/Packard 12015792 |
|---|---|
| Brand | Signal-Stat |
| Category | Pedestal Light |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Common Size | 4"x4" |
| Country of Origin | ZZ |
| Current Minor | 0.5 |
| Features & Benefits | 4805AAY115 includes OEM 7" harness that mates with truck harness - simplifying replacement|4805AAY118 included 75" OEM mating harness|Dual optic lens|Polycarbonate lens and housing|Side marker and reflector included in design|Mounting pad included|Two 5/16" studs on 2" centers |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Itm Id | 1983125 |
| KIT (Yes/No) | No |
| Lens Shape | Square |
| Lighting Technology | Incandescent |
| Lamp Connection | Hardwired |
| Lens Color | Yellow |
| Lens Height_INH | 4.7 |
| Lens Material | Polycarbonate |
| Lens Width_INH | 4.7 |
| Mounting Orientation | Vertical |
| Mount Type | 2 Stud Mount |
| NAPA Part Number | 4805AAY118 |
| Number of Diodes/Bulbs | 2 |
| Number of Wires | 3 |
| Packaging Type | Standard |
| Part Number | SS4805AAY118-S |
| Plug Side One | Hardwired |
| Plug Side Two | Packard Connector 12015791|Packard Connector 12015792 |
| Position | Universal |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Side Marker (Yes/No) | Yes |
| Standards Met | I6|A |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Pedestal Lights |
| Total Depth_MMT | 71.12 |
| Total Depth | 2.8 |
| Total Height_MMT | 121.92 |
| Total Height | 4.8 |
| Total Length | 2.1 |
| Total Width_MMT | 119.38 |
| Total Width | 4.7 |
| UNSPSC/Tariff | 25172900 |
| UPC | 7.24956E+11 |
| VMRS | 034-003-010 |
| Voltage (VLT) | 12 |
| Weight | 0.45 |
Currently no product available
WARNING: This product can expose you to chemicals including lead
and lead compounds, DEHP and bisphenol A (BPA) which are known to the
State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.p65warnings.ca.gov.

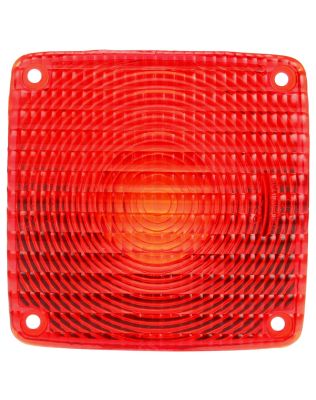

Replacement Parts / Kit Components
