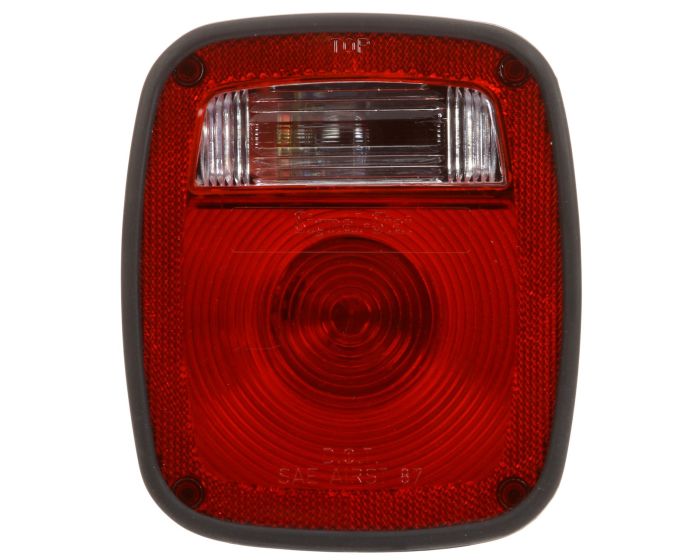

Product Name | Signal-Stat, Incandescent, Red/Clear Acrylic Lens, LH, Combo Box Light, 2 Stud , License Light, Packard , 12V |
---|---|
Brand | Signal-Stat |
Category | Combination Box Lights |
Series | Signal-Stat |
Warranty | 1-Year |
Country of Origin | ZZ |
Current Major | 2.1 |
Current Minor | 0.59 |
Features & Benefits | Mack #14M052M, 14MO52AM|Used on tractors, trucks and 4 wheel drive vehicles|Conforms to current DOT and SAE Standards |
Feature Highlights | No Plug|12 V |
Housing Color | Black |
Housing Material | Rubber |
Itm Id | 1986131 |
KIT (Yes/No) | No |
Lens Shape | Rectangular |
License Lamp (Yes/No) | Yes |
Lighting Technology | Incandescent |
Lamp Connection | Packard Connector |
Lens Color | Red|Clear |
Lens Height_INH | 6.75 |
Lens Material | Acrylic |
Mount Type | 2 Stud Mount |
NAPA Part Number | 5015 |
Number of Diodes/Bulbs | 2 |
OEM | Mack |
Packaging Type | Standard |
Part Number | SS5015-S |
Plug Side One | No Plug |
Plug Side Two | No Plug |
Position | Left Hand Side |
Sealed/Bulb Replaceable | Bulb Replaceable |
Standards Met | S2|I6|R|A|L|T |
Std Carton Qty | 1 |
Taxonomy | Lights.Combination Box Lights |
Total Depth_MMT | 51.82 |
Total Depth | 2.04 |
Temp. Description | Multi-Function RH Two Stud Lam |
Total Height_MMT | 171.45 |
Total Height | 6.75 |
Total Width_MMT | 146.05 |
Total Width | 5.75 |
UNSPSC/Tariff | 25172900 |
UPC | 7.24956E+11 |
VMRS | 034-002-013 |
Voltage (VLT) | 12 |
Weight | 1.44 |
