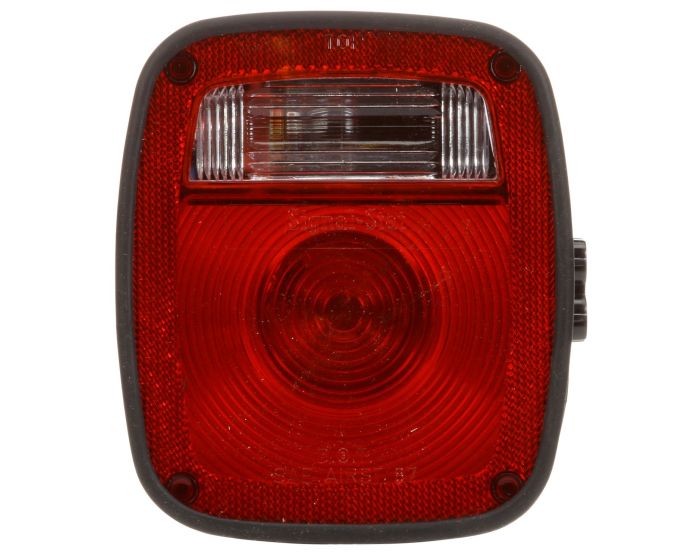

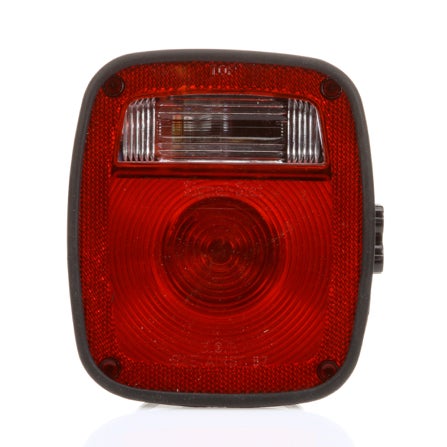

Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, LH, Combo Box Light, 3 Stud , License Light, Packard 12020116, Packard 12066271, 12V

5023

5024: Freightliner #681-544-0503 Peterbilt #16-06291 Volvo GM #8067855|5023: Freightliner #681-544-0503 Peterbilt #16-06291 Volvo GM #8067855
  • No Plug
  • 12 V
Need To Order By Phone?

(800) - 562 - 5012

Product Name Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, LH, Combo Box Light, 3 Stud , License Light, Packard 12020116, Packard 12066271, 12V
Brand Signal-Stat
Category Combination Box Lights
Series Signal-Stat
Warranty 1-Year
Country of Origin ZZ
Current Major 2.1
Current Minor 0.59
Features & Benefits 5024: Freightliner #681-544-0503 Peterbilt #16-06291 Volvo GM #8067855|5023: Freightliner #681-544-0503 Peterbilt #16-06291 Volvo GM #8067855
Feature Highlights No Plug|12 V
Housing Color Black
Housing Material Rubber
Itm Id 1986529
KIT (Yes/No) No
Lens Shape Rectangular
License Lamp (Yes/No) Yes
Lighting Technology Incandescent
Lamp Connection Packard Connector 12020116|Packard Connector 12066271
Lens Color Red|Clear
Lens Height_INH 6.73
Lens Material Polycarbonate
Mount Type 3 Stud Mount
NAPA Part Number 5023
Number of Diodes/Bulbs 2
Packaging Type Standard
Part Number SS5023-S
Plug Side One No Plug
Plug Side Two No Plug
Position Left Hand Side
Sealed/Bulb Replaceable Bulb Replaceable
Standards Met S2|R|A|L|T
Std Carton Qty 1
Taxonomy Lights.Combination Box Lights
Total Depth_MMT 72.14
Total Depth 2.84
Temp. Description MULTI-FUNCTION DUAL METRI-PACK
Total Height_MMT 170.94
Total Height 6.73
Total Width_MMT 146.3
Total Width 5.76
UNSPSC/Tariff 25172900
UPC 7.24956E+11
VMRS 034-002-022
Voltage (VLT) 12
Weight 1.31
Currently no product available
