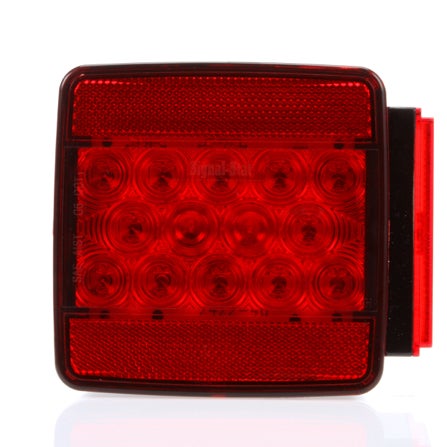

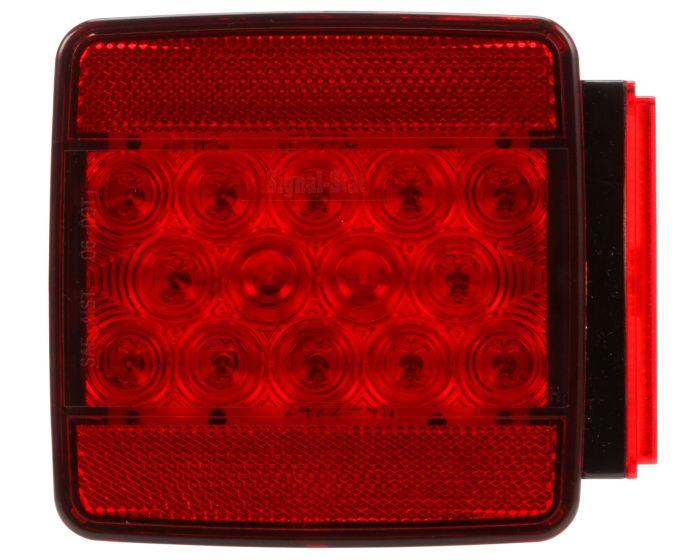

Signal-Stat, LED, Red/Clear Acrylic Lens, RH, Combo Box Light, 2 Stud , Hardwired, Stripped End, 12V, Display
5055D
Kit provides all legal lamps and reflective products for trailers less than 80" wide,Popular on camping, motorcycle, horse and utility trailers
- Stripped End
- Hardwired
- Display
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, LED, Red/Clear Acrylic Lens, RH, Combo Box Light, 2 Stud , Hardwired, Stripped End, 12V, Display |
|---|---|
| Brand | Signal-Stat |
| Category | Combination Box Lights |
| Series | Signal-Stat |
| Warranty | 2-Year |
| Country of Origin | TW |
| Current Major | 0.16 |
| Current Minor | 0.05 |
| Features & Benefits | Kit provides all legal lamps and reflective products for trailers less than 80" wide,Popular on camping, motorcycle, horse and utility trailers |
| Feature Highlights | Stripped End|Hardwired|Display|12 V |
| Housing Color | Black |
| Housing Material | ABS |
| Itm Id | 3633111 |
| KIT (Yes/No) | No |
| Lens Shape | Square |
| License Lamp (Yes/No) | No |
| Lighting Technology | LED |
| Lamp Connection | Hardwired |
| Lens Color | Red|Clear |
| Lens Height_INH | 5 |
| Lens Material | Acrylic |
| Mount Type | 2 Stud Mount |
| NAPA Part Number | 5055D |
| Number of Diodes/Bulbs | 14 |
| Number of Wires | 3 |
| Packaging Type | Display |
| Part Number | SS5055-D-S |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Position | Right Hand Side |
| Sealed/Bulb Replaceable | Sealed |
| Standards Met | P2|T|A|I|L|S |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Combination Box Lights |
| Total Depth_MMT | 46.99 |
| Total Depth | 1.85 |
| Total Height_MMT | 114.55 |
| Total Height | 4.51 |
| Total Width_MMT | 129.29 |
| Total Width | 5.09 |
| UNSPSC/Tariff | 25172900 |
| UPC | 735111183358 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 0.92 |
Currently no product available
