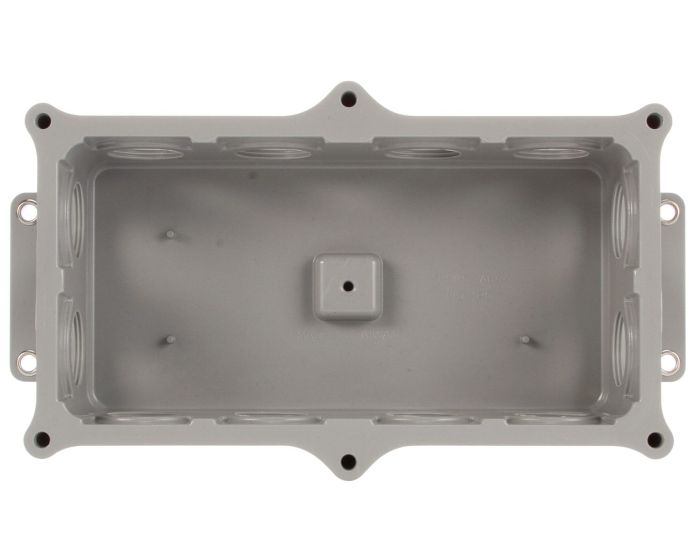

Super 50, 12-Port, Grey, Plastic Surface Mount, Junction Box
50601
With 50 percent more harness ports, alleviates the need for multiple boxes, while allowing for the addition of more harness systems and increased lighting needs|Larger box makes it easier to work on internal connections|Clear lid offers easy viewing of connections without having to remove lid, saving time when trying to identify lighting system problems|Made of high impact, chemical resistant, approved insulating plastic providing a long service life and eliminating the time and money needed for repair and replacement|Mounted by four eyelet-reinforced holes in base of box for increased durability|Contains 12 pre-tapped holes to accept compression fittings or filler plugs allowing for greater configuration versatility|Uses 50 Series compression fittings or 50830 filler plugs (6 included in kit)
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Super 50, 12-Port, Grey, Plastic Surface Mount, Junction Box |
|---|---|
| Brand | TL |
| Category | Junction Box |
| Series | Super 50 |
| Warranty | 5-Year |
| Country of Origin | TW |
| Features & Benefits | With 50 percent more harness ports, alleviates the need for multiple boxes, while allowing for the addition of more harness systems and increased lighting needs|Larger box makes it easier to work on internal connections|Clear lid offers easy viewing of connections without having to remove lid, saving time when trying to identify lighting system problems|Made of high impact, chemical resistant, approved insulating plastic providing a long service life and eliminating the time and money needed for repair and replacement|Mounted by four eyelet-reinforced holes in base of box for increased durability|Contains 12 pre-tapped holes to accept compression fittings or filler plugs allowing for greater configuration versatility|Uses 50 Series compression fittings or 50830 filler plugs (6 included in kit) |
| Housing Color | Gray |
| Housing Material | Plastic |
| Itm Id | 3050038 |
| KIT (Yes/No) | No |
| Mounting Connector Diameter_INH | 0.21 |
| Mount Type | Surface Mount |
| NAPA Part Number | 50601 |
| Number of Ports | 12 |
| Number of Terminal Connections | 0 |
| Packaging Type | Standard |
| Part Number | 50601-4 |
| Std Carton Qty | 1 |
| Taxonomy | Harness Systems & Wiring.Junction Boxes |
| Total Depth_MMT | 256.03 |
| Total Depth | 10.08 |
| Temp. Description | Super 50 Junction Box |
| Total Height_MMT | 78.49 |
| Total Height | 3.09 |
| Total Width_MMT | 138.94 |
| Total Width | 5.47 |
| UNSPSC/Tariff | 39000000 |
| UPC | 735111177029 |
| VMRS | 034-002-013 |
| Weight | 1.76 |
Currently no product available
