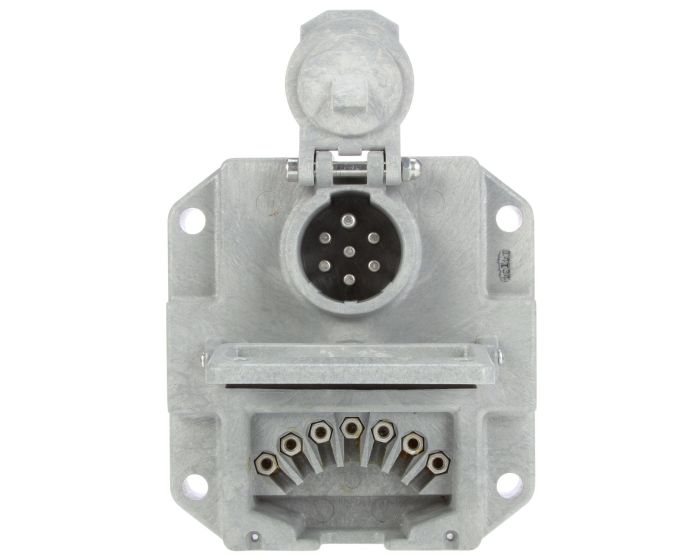

50 Series, 7 Solid Pin, Gray Polycarbonate, Surface Mount, Nose Box With 15 Amp Circuit Breaker

50806

Easily installed on new trailers or as a retrofit on existing equipment|Chemical-resistant and virtually indestructible box|Internal electrical contacts sealed to eliminate corrosion|100% pre-test electrically with a 40 amp capacity|Available with or without circuit breakers|Color-coded trailer main cable hook up terminals for proper connections
Need To Order By Phone?

(800) - 562 - 5012

Product Name 50 Series, 7 Solid Pin, Gray Polycarbonate, Surface Mount, Nose Box With 15 Amp Circuit Breaker
New No
Best Sellers No
Show Size Chart No
Brand TL
Category Nose Box
Series 50 Series
Warranty 1-Year
Country of Origin ZZ
Current_AMP 15
Features & Benefits Easily installed on new trailers or as a retrofit on existing equipment|Chemical-resistant and virtually indestructible box|Internal electrical contacts sealed to eliminate corrosion|100% pre-test electrically with a 40 amp capacity|Available with or without circuit breakers|Color-coded trailer main cable hook up terminals for proper connections
Housing Color Gray
Housing Material Polycarbonate
Itm Id 2179286
KIT (Yes/No) No
Mounting Connector Diameter_INH 0.41
Mount Type Surface Mount
NAPA Part Number 50806
Number of Pins 7
Packaging Type Standard
Part Number 50806-4
Split/Solid Pin Solid Pin
Std Carton Qty 1
Taxonomy Harness Systems & Wiring.Nose Boxes
Total Depth_MMT 157.23
Total Depth 6.19
Temp. Description Nose box W/15 Amp Circuit Brea
Total Height_MMT 146.3
Total Height 5.76
Total Width_MMT 77.72
Total Width 3.06
UNSPSC/Tariff 39000000
UPC 735111019282
VMRS 034-003-067
Weight 1.8
Currently no product available
