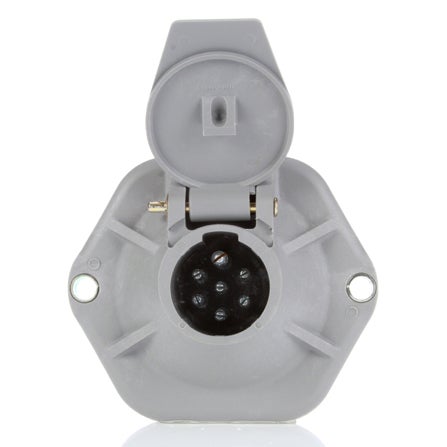

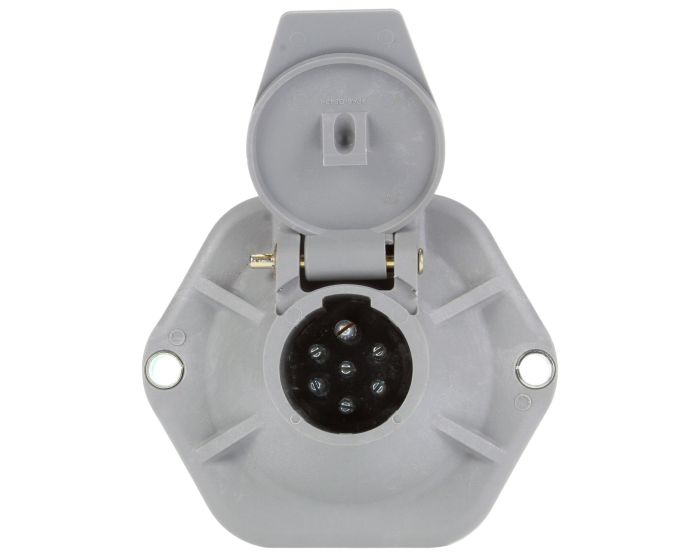

50 Series, 7 Split Pin, Grey Plastic, Surface Mount, Receptacle
50861
Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|We recommend using rubber boots with flush mount receptacles
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 50 Series, 7 Split Pin, Grey Plastic, Surface Mount, Receptacle |
|---|---|
| Brand | TL |
| Series | 50 Series |
| Warranty | 1-Year |
| Catalog Family Name | Harness Systems & Wiring.Receptacles>50 Series>Split Pin>Surface Mount>7 Pin |
| Country of Origin | ZZ |
| Features & Benefits | Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|We recommend using rubber boots with flush mount receptacles |
| Housing Color | Gray |
| Housing Material | Plastic |
| Itm Id | 2180332 |
| KIT (Yes/No) | No |
| Mount Type | Surface Mount |
| NAPA Part Number | 50861 |
| Number of Pins | 7 |
| Packaging Type | Standard |
| Part Number | 50861-4 |
| Split/Solid Pin | Split Pin |
| Std Carton Qty | 1 |
| Taxonomy | Harness Systems & Wiring.Receptacles |
| Total Depth_MMT | 86.36 |
| Temp. Description | Standard 7-Way Body, Split Pin |
| Total Height_INH | 4.5 |
| Total Height_MMT | 114.3 |
| Total Width_INH | 5.1 |
| Total Width_MMT | 129.54 |
| UNSPSC | 39121406 |
| UNSPSC/Tariff | 39121406 |
| UPC | 735111041894 |
| VMRS | 034-003-034 |
| Weight_LBR | 0.54 |
