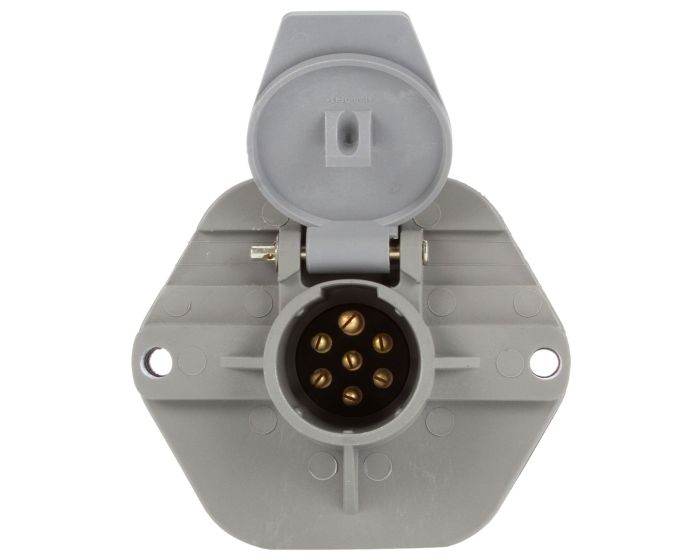

50 Series, 15A, 7 Split Pin, Grey Plastic, Surface Mount, Receptacle

50863

Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|We recommend using rubber boots with flush mount receptacles
Need To Order By Phone?

(800) - 562 - 5012

Product Name 50 Series, 15A, 7 Split Pin, Grey Plastic, Surface Mount, Receptacle
New No
Best Sellers No
Show Size Chart No
Brand TL
Series 50 Series
Warranty 1-Year
Catalog Family Name Harness Systems & Wiring.Receptacles>50 Series>Split Pin>Surface Mount>7 Pin
Country of Origin ZZ
Current_AMP 15
Features & Benefits Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|We recommend using rubber boots with flush mount receptacles
Housing Color Gray
Housing Material Plastic
Itm Id 2180421
KIT (Yes/No) No
Mount Type Surface Mount
NAPA Part Number 50863
Number of Pins 7
Packaging Type Standard
Part Number 50863-4
Split/Solid Pin Split Pin
Std Carton Qty 1
Taxonomy Harness Systems & Wiring.Receptacles
Total Depth_MMT 86.36
Temp. Description Receptacle W/15 Amp Circuit Br
Total Height_INH 4.5
Total Height_MMT 114.3
Total Width_INH 5.1
Total Width_MMT 129.54
UNSPSC 39121406
UNSPSC/Tariff 39121406
UPC 735111041917
VMRS 034-003-034
Weight_LBR 1.2
