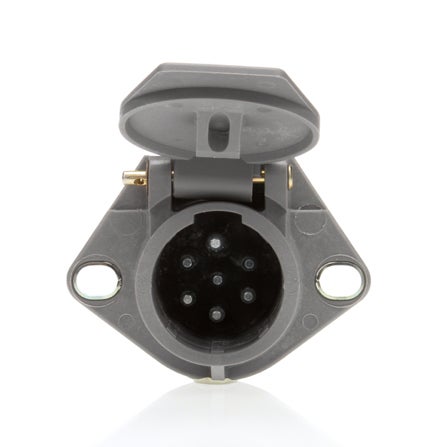

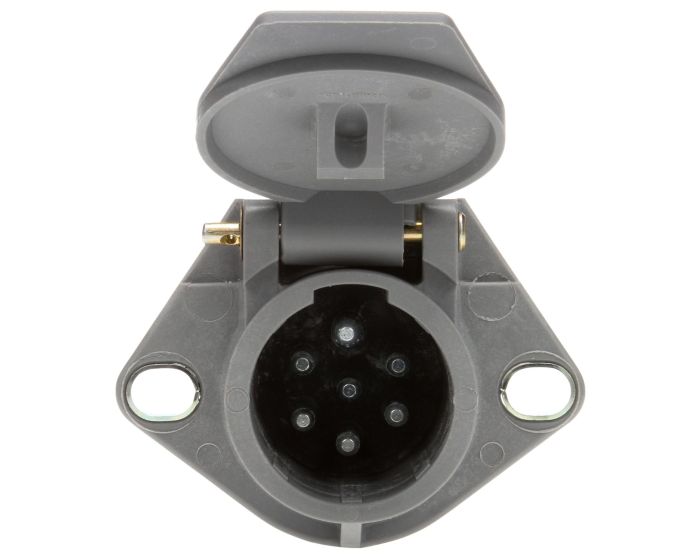

50 Series, 7 Solid Pin, Grey Plastic, Flush Mount, Receptacle

50868

Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|Push-on-terminal design, #50872 compatible as OEM replacement|We recommend using rubber boots when flush mounting receptacles
Need To Order By Phone?

(800) - 562 - 5012

Product Name 50 Series, 7 Solid Pin, Grey Plastic, Flush Mount, Receptacle
New No
Best Sellers No
Show Size Chart No
Brand TL
Series 50 Series
Warranty 1-Year
Catalog Family Name Harness Systems & Wiring.Receptacles>50 Series>Solid Pin>Flush Mount>7 Pin
Country of Origin ZZ
Features & Benefits Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|Push-on-terminal design, #50872 compatible as OEM replacement|We recommend using rubber boots when flush mounting receptacles
Housing Color Gray
Housing Material Plastic
Itm Id 2180586
KIT (Yes/No) No
Mount Type Flush Mount
NAPA Part Number 50868
Number of Pins 7
Packaging Type Standard
Part Number 50868-4
Split/Solid Pin Solid Pin
Std Carton Qty 1
Taxonomy Harness Systems & Wiring.Receptacles
Total Depth_MMT 83.82
Temp. Description 7- Way Body,2 Hole Flange, Sol
Total Height_INH 2.77
Total Height_MMT 70.36
Total Width_INH 3.72
Total Width_MMT 94.49
UNSPSC 39121406
UNSPSC/Tariff 39121406
UPC 735111019404
VMRS 034-002-013
Weight_LBR 0.42
