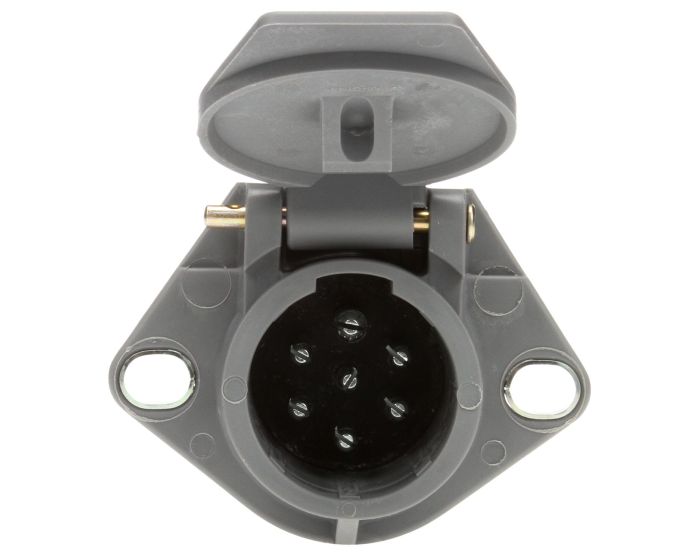

50 Series, Push-On, 7 Split Pin, Grey Plastic, Flush Mount, Receptacle
50872
Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|Push-on-terminal design, #50872 compatible as OEM replacement|We recommend using rubber boots when flush mounting receptacles
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 50 Series, Push-On, 7 Split Pin, Grey Plastic, Flush Mount, Receptacle |
|---|---|
| Brand | TL |
| Series | 50 Series |
| Warranty | 1-Year |
| Catalog Family Name | Harness Systems & Wiring.Receptacles>50 Series>Split Pin>Flush Mount>7 Pin |
| Country of Origin | US |
| Features & Benefits | Tough GE Noryl, non-conductive, corrosion resistant body|Floating type, cadmium-plated brass pins allow best alignment and long-lasting contact with plug|Internal connections feature a direct wired ground|Circuits are identified by color codes and embossed notations|Ring terminals are used to connect wires|Receptacle pins prevent increased resistance due to strand breakage caused by set screws|Available in standard and circuit breaker version|Meets SAE J560 standards|Push-on-terminal design, #50872 compatible as OEM replacement|We recommend using rubber boots when flush mounting receptacles |
| Housing Color | Gray |
| Housing Material | Plastic |
| Itm Id | 2180746 |
| KIT (Yes/No) | No |
| Mount Type | Flush Mount |
| NAPA Part Number | 50872 |
| Number of Pins | 7 |
| Packaging Type | Standard |
| Part Number | 50872-4 |
| Split/Solid Pin | Split Pin |
| Std Carton Qty | 1 |
| Taxonomy | Harness Systems & Wiring.Receptacles |
| Total Depth_MMT | 83.82 |
| Temp. Description | 7- Way Body,Push-On,2 Hole, Sp |
| Total Height_INH | 2.77 |
| Total Height_MMT | 70.36 |
| Total Width_INH | 3.72 |
| Total Width_MMT | 94.49 |
| UNSPSC | 39121406 |
| UNSPSC/Tariff | 39121406 |
| UPC | 735111019442 |
| VMRS | 034-003-067 |
| Weight_LBR | 0.4 |
Currently no product available
