50 Series, Smart Box, 7 Solid Pin, Grey Plastic, Surface Mount, Nose Box
50878

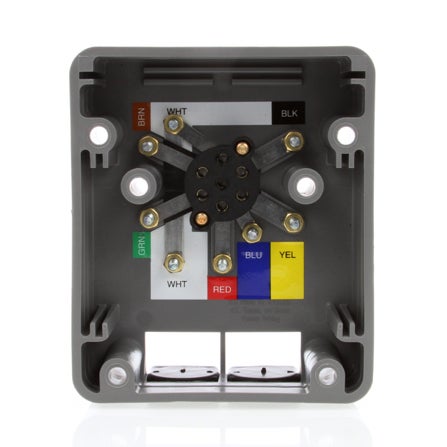

Eliminates the need to rewire the nose box when replacing a damaged receptacle|Fits standard mounting bolt pattern|Includes 2 cable entry grommets|Wiring remains stationary on studs inside the box|No need to disturb wiring when replacing receptacle|Receptacle simply plugs in and secures with 2 nuts|Brass jumpers bridge from studs to receptacle pins
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | 50 Series, Smart Box, 7 Solid Pin, Grey Plastic, Surface Mount, Nose Box |
|---|---|
| SKU | 50878 |
| Brand | TL |
| Category | Nose Box |
| Series | 50 Series |
| Warranty | 1-Year |
| Country of Origin | ZZ |
| Features & Benefits | Eliminates the need to rewire the nose box when replacing a damaged receptacle|Fits standard mounting bolt pattern|Includes 2 cable entry grommets|Wiring remains stationary on studs inside the box|No need to disturb wiring when replacing receptacle|Receptacle simply plugs in and secures with 2 nuts|Brass jumpers bridge from studs to receptacle pins |
| Housing Color | Gray |
| Housing Material | Plastic |
| Itm Id | 2180842 |
| KIT (Yes/No) | No |
| Mounting Connector Diameter_INH | 0.313 |
| Mount Type | Surface Mount |
| NAPA Part Number | 50878 |
| Number of Pins | 7 |
| Packaging Type | Standard |
| Part Number | 50878-4 |
| Split/Solid Pin | Solid Pin |
| Std Carton Qty | 1 |
| Taxonomy | Harness Systems & Wiring.Nose Boxes |
| Total Depth_MMT | 162.05 |
| Total Depth | 6.38 |
| Temp. Description | SMART BOX W/SOLID PINS |
| Total Height_MMT | 136.65 |
| Total Height | 5.38 |
| Total Width_MMT | 57.4 |
| Total Width | 2.26 |
| UNSPSC/Tariff | 39000000 |
| UPC | 7.35111E+11 |
| VMRS | 034-003-067 |
| Weight | 1.9 |
