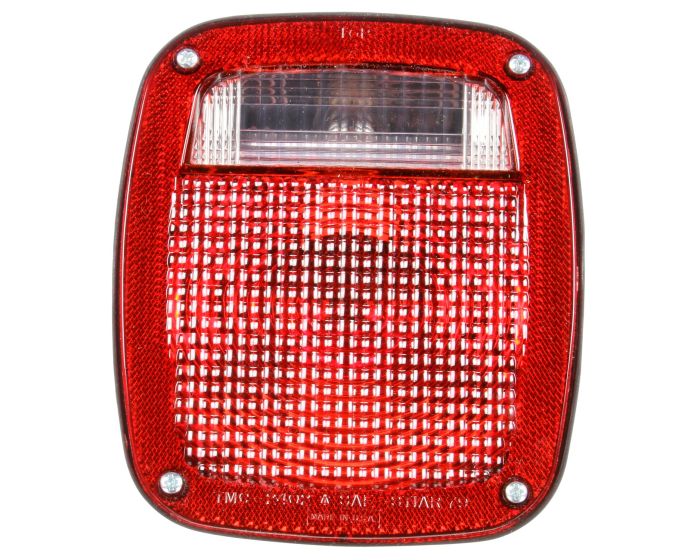

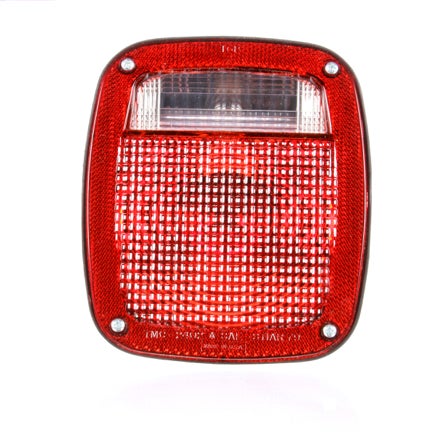

Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, Left Hand Side, Combo Box Light, 3 Stud , License Light, Packard , 12V
5315Y101
Navistar #1661281C91|Navistar #1661282C91|RH lamp popular replacement for GM/IH OE #56139474, #15565732|Combination stop, tail, turn, back-up and reflex reflector|Dual optic acrylic lens|Permastat body provides impact resistance|5315Y101 has dual Metri-Pack connectors-one on either side of the lamp|5315Y101 uses #9470 main harness|5316Y101 uses #9469 jumper harness
- No Plug
- 12 V
Need To Order By Phone?
(800) - 562 - 5012
| Product Name | Signal-Stat, Incandescent, Red/Clear Polycarbonate Lens, Left Hand Side, Combo Box Light, 3 Stud , License Light, Packard , 12V |
|---|---|
| Brand | Signal-Stat |
| Category | Combination Box Lights |
| Series | Signal-Stat |
| Warranty | 1-Year |
| Country of Origin | CN |
| Current Major | 2.1 |
| Current Minor | 0.59 |
| Features & Benefits | Navistar #1661281C91|Navistar #1661282C91|RH lamp popular replacement for GM/IH OE #56139474, #15565732|Combination stop, tail, turn, back-up and reflex reflector|Dual optic acrylic lens|Permastat body provides impact resistance|5315Y101 has dual Metri-Pack connectors-one on either side of the lamp|5315Y101 uses #9470 main harness|5316Y101 uses #9469 jumper harness |
| Feature Highlights | No Plug|12 V |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Itm Id | 1989391 |
| KIT (Yes/No) | No |
| Lens Shape | Rectangular |
| License Lamp (Yes/No) | Yes |
| Lighting Technology | Incandescent |
| Lamp Connection | Packard Connector |
| Lens Color | Red|Clear |
| Lens Height_INH | 6.69 |
| Lens Material | Polycarbonate |
| Mount Type | 3 Stud Mount |
| NAPA Part Number | 5315Y101 |
| Number of Diodes/Bulbs | 2 |
| OEM | Navistar |
| Packaging Type | Standard |
| Part Number | SS5315Y101-S |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Position | Left Hand Side |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Standards Met | S2|I6|R|A|L|T |
| Std Carton Qty | 1 |
| Taxonomy | Lights.Combination Box Lights |
| Total Depth_MMT | 69.85 |
| Total Depth | 2.75 |
| Temp. Description | Multi-Function Lamp W/ Metri P |
| Total Height_MMT | 169.85 |
| Total Height | 6.69 |
| Total Width_MMT | 146.05 |
| Total Width | 5.75 |
| UNSPSC/Tariff | 25172900 |
| UPC | 614046204379 |
| VMRS | 034-002-013 |
| Voltage (VLT) | 12 |
| Weight | 1.2 |
Currently no product available
