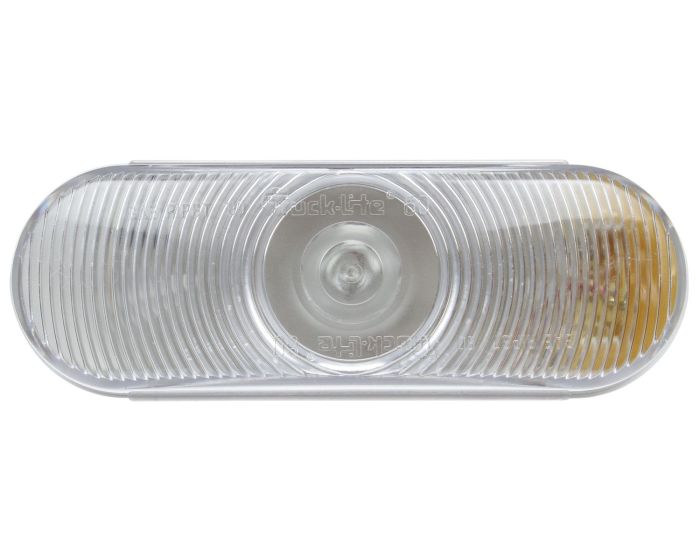

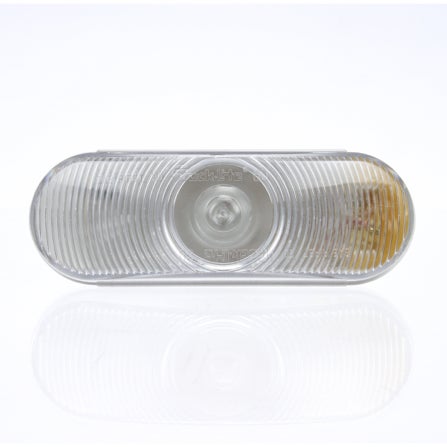

Product Name | 60 Series, Incandescent, Clear Oval, 1 Bulb, Back-Up Light, Black Grommet Mount, PL-2, Stripped End/Ring Terminal, 12V, Kit |
---|---|
Brand | TL |
Category | Back-Up Light |
Series | 60 Series |
Warranty | 2-Year |
Compliance Family | FMVSS 108|CMVSS 108|DOT|SAE |
Country of Origin | ZZ |
Current_AMP | 2.1 |
Diamond Shell (Yes/No) | No |
Features & Benefits | High-impact polycarbonate lens and housing are sonically sealed|Heavy duty shock mounted bulb|Legal mounted vertically or horizontally|Only one lamp required to meet federal lighting regulations|Not recommended for dome lamp use|Replaces Signal-Stat 4071W|Upgrade to LED Lighting Systems using Truck-Lite's 66 Series products |
Feature Highlights | LC_PL-2|Kit|12 V |
Housing Material | Polycarbonate |
Itm Id | 2202079 |
KIT (Yes/No) | Yes |
Lens Shape | Oval |
Lighting Technology | Incandescent |
Lamp Connection | PL-2 |
Lens Color | Clear |
Lens Height_INH | 2.2 |
Lens Material | Polycarbonate |
Lens Width_INH | 6.46 |
Mount/Trim Color | Black |
Mount/Trim Material | PVC |
Mount Type | Grommet Kit |
NAPA Part Number | 60004C |
Number of Diodes/Bulbs | 1 |
Number of Wires | 2 |
Packaging Type | Standard |
Part Number | 60004C4 |
Plug Side One (Simplified) | PL-2 |
Plug Side One | PL-2 |
Plug Side Two | Stripped End|Ring Terminal |
Sealed/Bulb Replaceable | Sealed |
Standards Met | R |
Std Carton Qty | 1 |
Taxonomy | Lights.Back-Up Lights |
Total Depth_MMT | 53.98 |
Total Depth | 2.13 |
Temp. Description | Super Mdl 60 Clear Lamp Kit |
Total Height_MMT | 57.15 |
Total Height | 2.25 |
Total Width_MMT | 161.93 |
Total Width | 6.38 |
UNSPSC/Tariff | 25172900 |
UPC | 0735111070429 |
VMRS | 034-003-074 |
Voltage (VLT) | 12 |
Weight | .53 |
